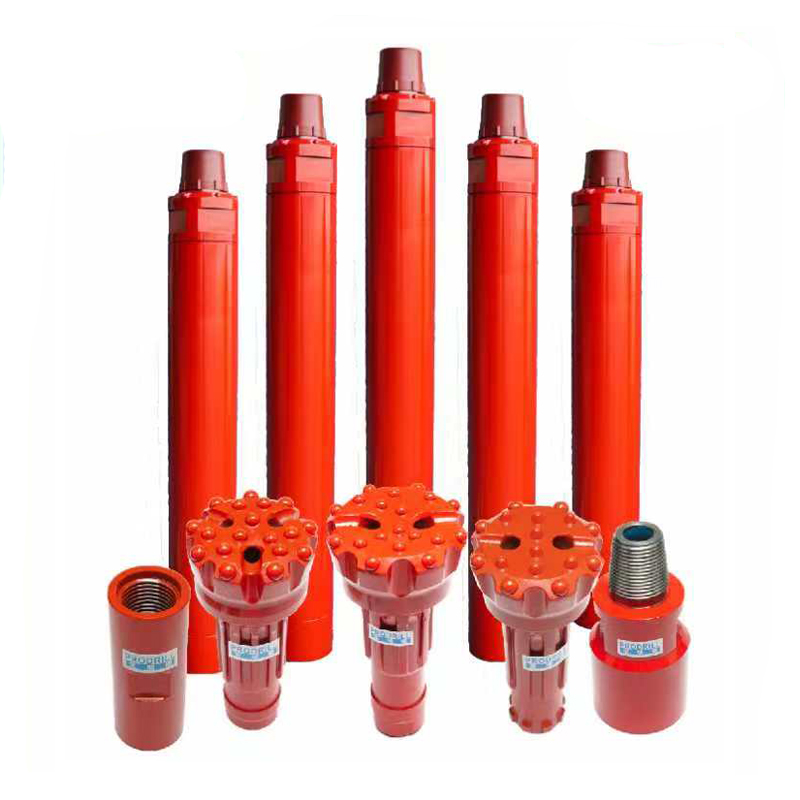

Pneumatic Hammers P-110-2,8MR MH 60.00
- Bit coupling type:Bayonet:
- Percussive capacity, kW:2,8:
- Nominal pressure, MPa:0,5:
- Air consumption, m3/min:7:
- Diameter, mm:98:
- Length, mm:667:
- Connecting thread:72×10:
- Weight, kg:24:
- Wrench:Wrench 85; Wrench 90:
-
SOD-114-Retrievable Symmetric Casing System by DTH Hammer
Rock drilling tools manufacturer ProDrill: Retrievable symmetric drilling system by DTH hammer is designed to drill and case a hole simultaneously through unstable ground conditions. The […]
-
SOD168 Retrievable Symmetrix Casing
SOD 168 mm Retrievable Symmetrix Overburdern Drilling System with DHD350 DTH hammer Retrievable <span “=””>symmetric drilling system by <span “=””>DTH hammer is designed to drill and case a hole simultaneously […]
-
SOD168-Permanent Concentric Casing System by DTH Hammer
- Code No.: SOD168
- Casing O.D.: 168mm
- Casing Wall Max: 13mm
- Ring Bit I.D.: 125mm
- Ring Bit O.D.: 185mm
- Pilot Bit O.D.: 140mm
- DTH Hammer: 5”
- DTH Pipe: 76mm, 89mm
-
SOD193-Permanent Symmetrix Casing System by DTH Hammer
Rock drilling tools manufacturer ProDrill: Permanent symmetric drilling system by dth hammer is designed to drill and case a hole simultaneously through unstable ground conditions. The pilot bit incorporated with […]
-
SOD194-Permanent Concentric Casing System by DTH Hammer
- Out Dia:194mm
- Inner Dia: 174-182mm
- Reamed Hole Dia: 211mm
- Casing Shoe Inner Dia: 166mm
- Drill Pipe:89/114
-
SOD610 Permanent Symmetric Casing System
- Casing O.D.: 610mm
- Casing Wall Max: 18mm
- Ring Bit I.D.: 528mm
- Ring Bit O.D.: 630mm
- Pilot Bit O.D.: 555mm
- DTH Hammer: 18”
- Drill Pipe: 168mm
-

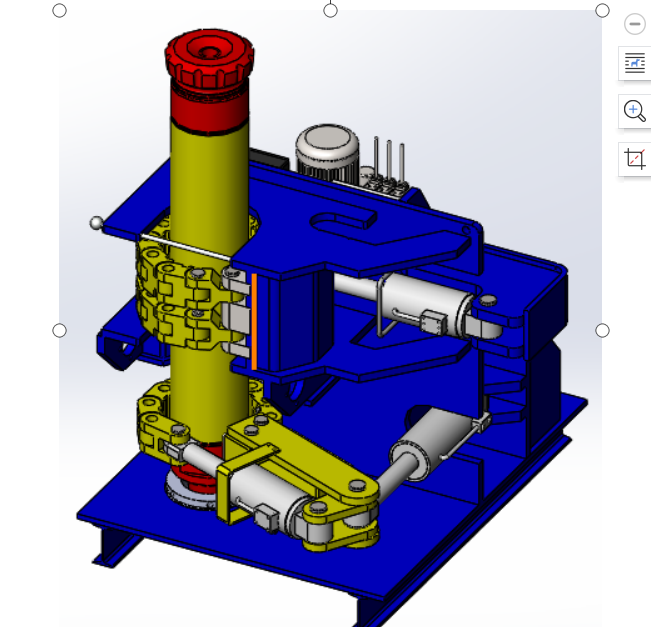

Vertical and Chain type Breakout Bench for 12″～15″ DTH Hammer
Weight ： 1400KG
length ： 1750mm
Width : 1500mm
Height :1350mm
Operating height: 1000mm
Chain pitch :140mm
Clamping block Number of teeth: 3
Applicable conditions DTH hammer: NUMA125A、NUMA330A
Suitable for DTH hammer type :Middle ,high air pressure
