B10 portable jack hammer
Model B10 portable jack hammer is the power of the broken tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!
-
B67C pneumatic breaker (Paving Breaker)
A pneumatic jackhammer, also known as a pneumatic drill or pneumatic hammer, is a jackhammer that uses compressed air as the power source. The air supply usually comes from a portable air compressor driven by a diesel engine. Reciprocating compressors were formerly used. The unit comprised a reciprocating compressor driven, through a centrifugal clutch, by a diesel engine. The engine’s governor provided only two speeds:
1.idling, when the clutch was disengaged
2.maximum, when the clutch was engaged and the compressor was running
-
B87C pneumatic breaker (Paving Breaker)
A pneumatic jackhammer, also known as a pneumatic drill or pneumatic hammer, is a jackhammer that uses compressed air as the power source. The air supply usually comes from a portable air compressor driven by a diesel engine. Reciprocating compressors were formerly used. The unit comprised a reciprocating compressor driven, through a centrifugal clutch, by a diesel engine. The engine’s governor provided only two speeds:
1.idling, when the clutch was disengaged
2.maximum, when the clutch was engaged and the compressor was running
weight : 39KG
length : 686mm
working air pressure : 0.63 Mpa
impact energy :100±10%J
impact power :1.8±10%KW
precussive frequency : 1200 B.P.M
air tube size : 10mm
bit head size : φ32*160mm
air inlet size : 3/4
-
Excavator Mounted Hydraulic Rock Splitter
Advantages:
Safety : Vibration free, noise free
High Efficiency : about 1 to 1.5 meter for one time about one cubic meter splitting with highest productivity due to a very high splitter force, 3 times -6 times power than DARDA rock splitter. rock splitting of 200 cubic meter per day with two crawler drill.
Adoptability: Prodrill Jumpo super wedge rock splitters can be attached to almost any kind of hydraulic excavator from 12 ton and up.
Simple and easy use and low cost in repair. Just one Excavator can do Splitting, Digging and Cleaning. Installation of Super Wedge to excavator is so easy needs just 20 minutes. Prodrill use the same type of hydraulic oil pipe line as hydraulic breaker. Even man power, only one or two workers are enough to operate including operator of excavator. -
Forging Jack Hammer Pneumatic Paving Breaker RB777
- Type:RB777
- Weight:37(KG)
- Length:733(mm)
- Cylinder dia:57(mm)
- Rammar stroke:189(mm)
- Working pressure:0.4-0.5(Mpa)
- Impact frequency:>=18.3(Hz)
- Air consumption:<=34(L/S)
- Air pipeinner dia:19(mm)
-

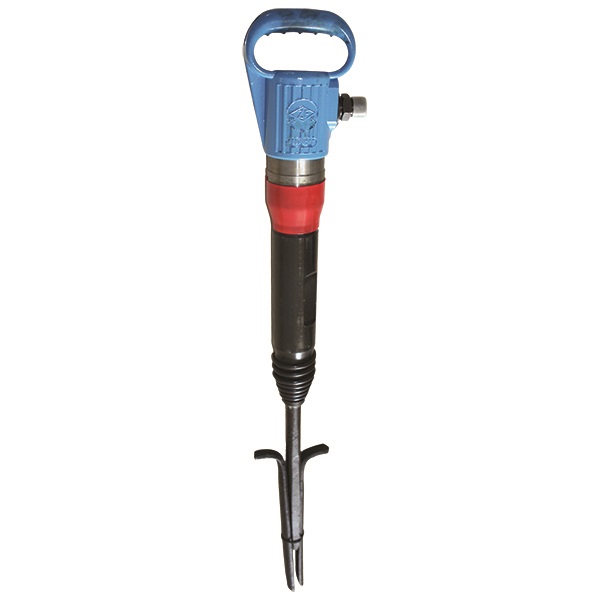

G10(G15/16/20) Pneumatic Hammer Splitter
A pneumatic jackhammer, also known as a pneumatic drill or pneumatic hammer, is a jackhammer that uses compressed air as the power source. The air supply usually comes from a portable air compressor driven by a diesel engine. Reciprocating compressors were formerly used. The unit comprised a reciprocating compressor driven, through a centrifugal clutch, by a diesel engine.
-

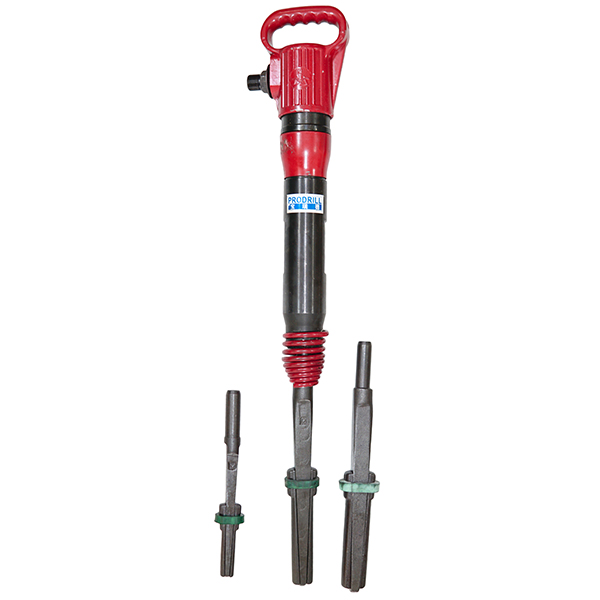

G15 (G10/16/20)Pneumatic Hammer Splitter
- Overall Length: 570mm
- Weight: 10kg
- Impact Frequency: ≥16Hz
- Impact Energy: ≥45J
- Air Consumption: ≤26L/S
- Pituitary Diameter: 38mm
- Hose Size: Φ16mm
- Specification of Drill Shank: Φ24*70
- It is used our pressure: 0.63Mpa
Category: Pneumatic Splitter Tags: 32mm Pneumatic Hammer Splitter, G15 Pneumatic Hammer Splitter, Pneumatic Hammer Splitter
-
G7 pneumatic air pick
A pneumatic jackhammer, also known as a pneumatic drill or pneumatic hammer, is a jackhammer that uses compressed air as the power source. The air supply usually comes from a portable air compressor driven by a diesel engine. Reciprocating compressors were formerly used. The unit comprised a reciprocating compressor driven, through a centrifugal clutch, by a diesel engine. The engine’s governor provided only two speeds:
1.idling, when the clutch was disengaged
2.maximum, when the clutch was engaged and the compressor was running
-
Gas Blaster, Carbon Dioxide Gas Rock Splitter
This new product is to replace the expension mortar using in cracking, which is more efficient, cheaper and more environmentally friendly. Moreover, this is different from explosives, but it uses the principle of gas expansion, so it will be safer.
-
Gas expansion splitter machine
CO2, gas expansion fracturing is non-explosiver rock demoltion splitting machine, a result of physical volume change, it has not shock wave, vibration wave, blasting wave, etc. That means gas expansion forms from combined action of gas volume and pressure, instead of explosive.
No impact wave
No vibration Wave
No blasting wave
Data of gas expansion -

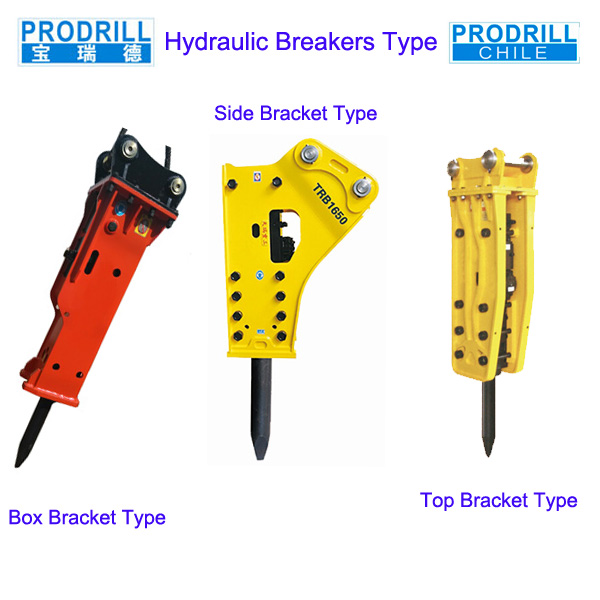

Hydraulic Breaker Hammer
- Certification:CE certification
- Feature:Long durability and Stable performance
-
Hydraulic Rock Splitter
The hydraulic splitter, also known as rock splitter and darda splitter, is the first type of portable hydraulic tool that is used in demolition jobs which involve breaking large blocks of concrete and rocks.
