Hand Held Rock Drills

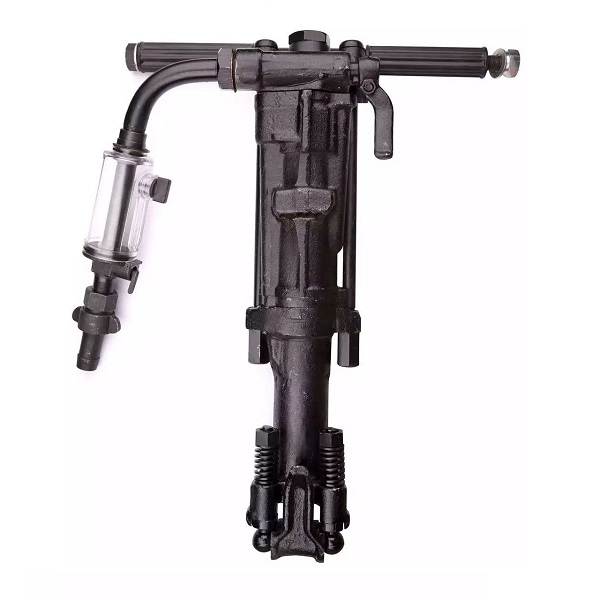

TY24C Hand Held Rock Drills for quarrying & demolition

TY 24C toyo pneumatic rock drill are light and small types designed on the basis of less recoil in safty.They are suitable to the secondary rock breaking, and bedrock drilling blasthole for demolition rock and dimension stone quarrying.
Y10 Hand Held Rock Drills

Model Y10 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
Y20LY Hand Held Rock Drills for quarrying & demolition

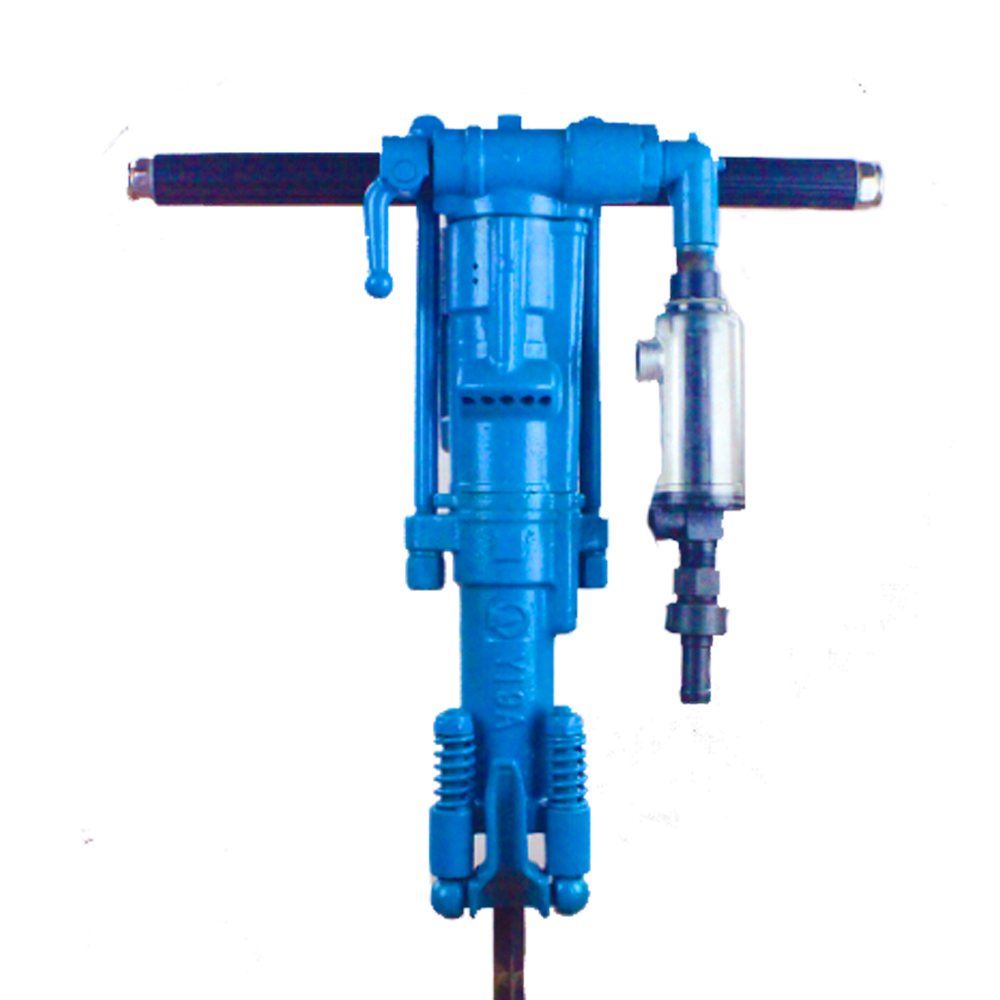

Y24 Hand Held Rock Drills for quarrying & demolition
- Weight: 24KGS
- Cylinder Stroke: 70*70mm
- Air Consumption: 55L/s
- Air Hose Size: 19mm
- Bore Diameter: 32-42mm
- Drilling Depth: 5mm
- Shank: 22(25)x108mm

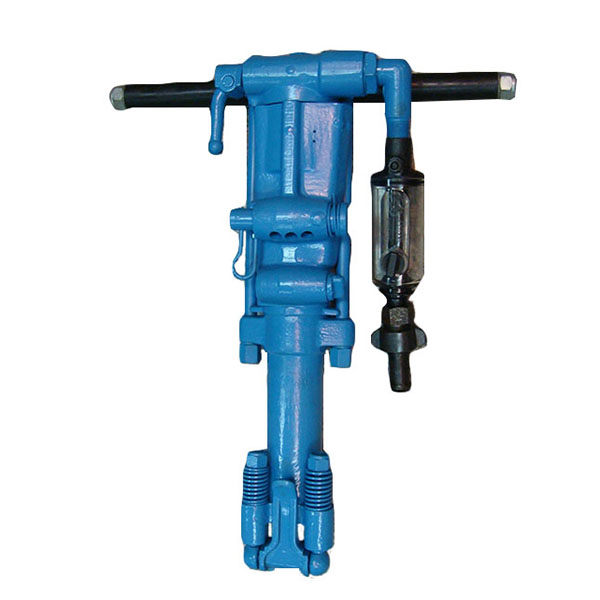

Y26 Hand Held Rock Drills for quarrying & demolition
- Weight: 26 kg
- Size: 661*247*195 mm
- Air Pressure: 0.63 Mpa
- Air Consumption: ≤81 L/s
- Impact Frequency: ≥37 Hz
- Air Hose Size: 25 mm
- Water Hose Size: 13 mm
- Bore Diameter: Φ34～Φ42 mm
- Drilling Depth: 5 m
- Shank Size (Hex.*L): 22*108±1

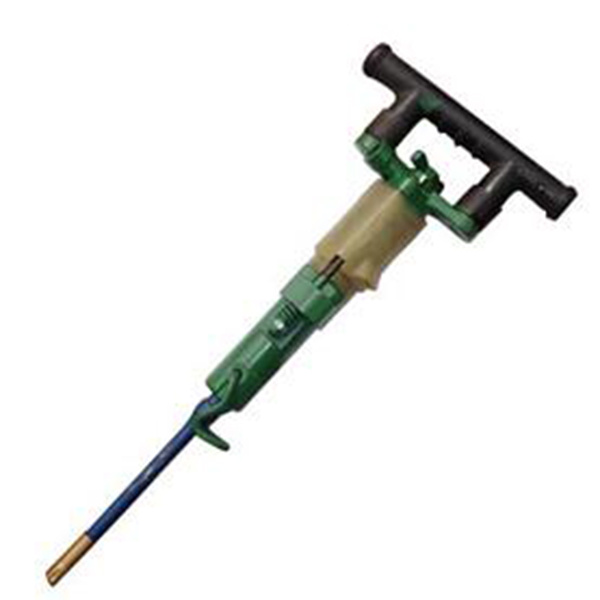

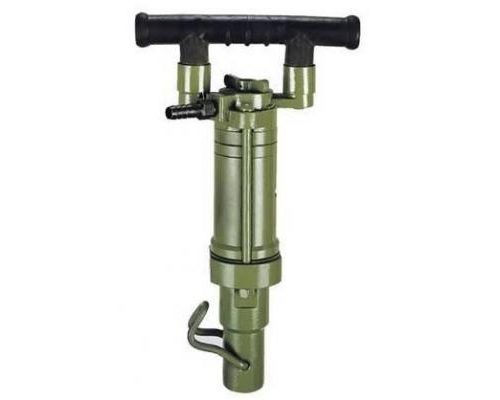

Y6 Hand Held Rock Drills

Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
Y8 Hand held Rock Drill

Model Y8 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
