Pneumatic Hammers P-110-2,8MR MH 60.00

  • Bit coupling type:Bayonet:
  • Percussive capacity, kW:2,8:
  • Nominal pressure, MPa:0,5:
  • Air consumption, m3/min:7:
  • Diameter, mm:98:
  • Length, mm:667:
  • Connecting thread:72×10:
  • Weight, kg:24:
  • Wrench:Wrench 85; Wrench 90:
Category:

Pneumatic Hammers P-110-2,8MR MH 60.00-ProDrill

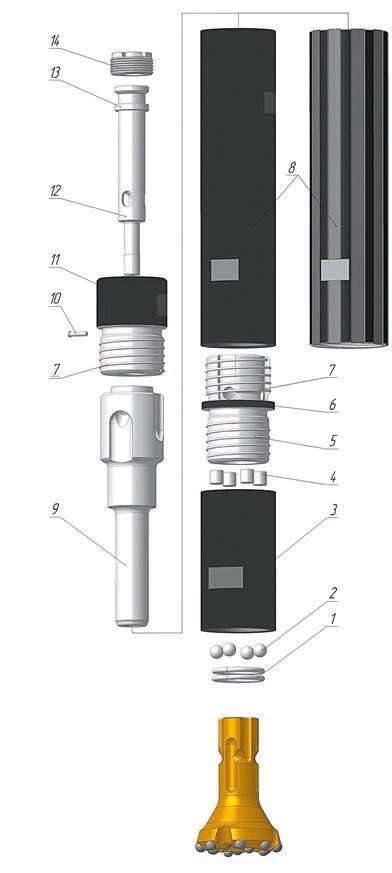

1  Retaining ring

2  Ball

3  Chuck

4  Roller

5  Thread

6  Top adapter

7  Thread

8  Cylinder (flanged or plain)

9   Striker

10  Retainer

11  Lower adapter

12  Air – distribution tube

13  Seat

14  Adjusting nut

Flat Face
An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.

Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

Pneumatic Hammers P-110-2,8MR MH 60.00-ProDrill

Prodrill Down The Hole Hammer has the following advantages:

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of DTH hammer designed according to advanced rock drilling theory.
2.Unique design to maximize productivity and longest service life of DTH hammer due to high quality raw materials and know-how heat treatment process.
3. Low problem rate and easy to maintenance due to simple, reliable inner structure of hammer.
4. Interchangeable with DTH drill bit, DTH drill pipe and easy assemble and disassemble.

parameter：

Bit coupling type:Bayonet
Percussive capacity, kW:2,8
Nominal pressure, MPa:0,5
Air consumption, m3/min:7
Diameter, mm:98
Length, mm:667
Connecting thread:72×10
Weight, kg:24
Wrench:Wrench 85; Wrench 90
