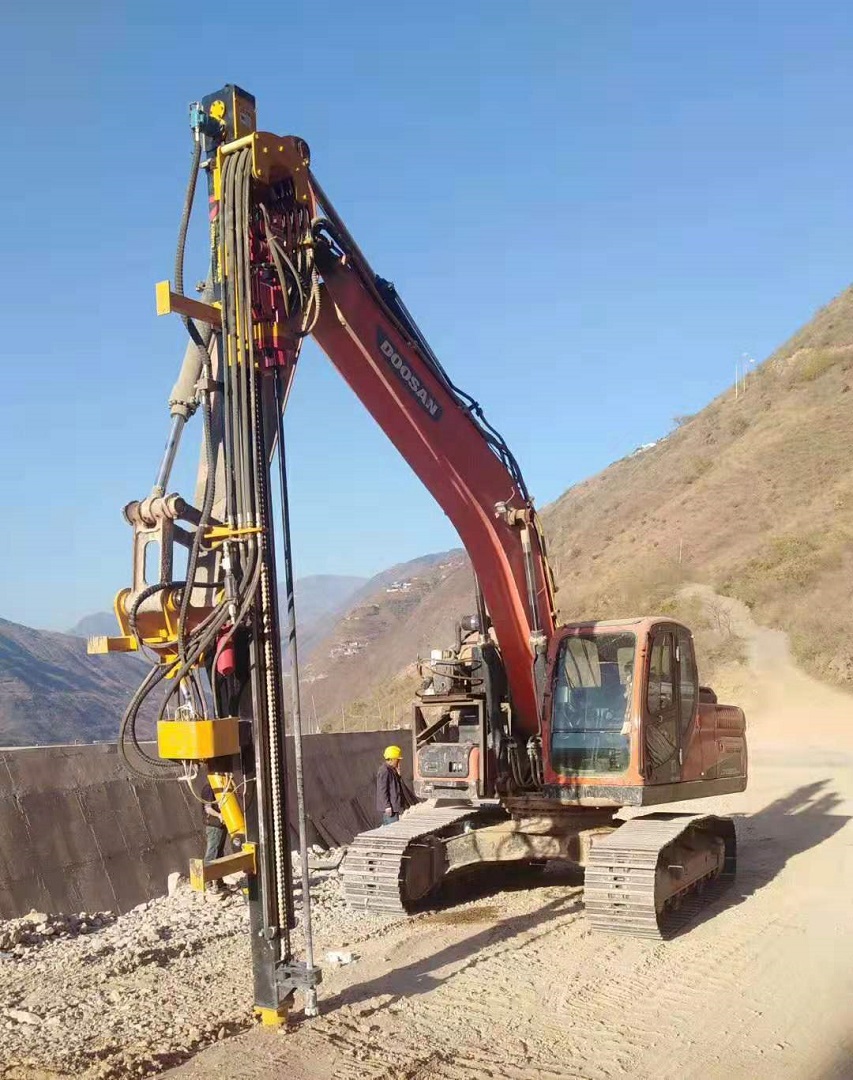

PD-90 EXCAVATOR MOUNTED ROCK DRILL

1)PD90 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.

2）The rate of the Pump can reach 200L/min, drilling diameter 38-115mm, 3m depth per time drilling.

3）Drilling speed: 1 Meter/Min for hard rock, 1.2 Meter/Min can drill 1m depth for soft rock.

4）Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.

5）Drilling control system from Sandvik together with the mechanical rod changer. Anti-jamming design, high efficient, and more reliable ,perfect for quarry and surface mining

Description

Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock, and concrete demolition, construction works, etc. Pro Drill rock drills’ percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator’s boom.Besides demanding conditions, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.

PD-90 EXCAVATOR MOUNTED ROCK DRILL-ProDrill

Feature

PD90 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.
The rate of the Pump can reach 200L/min, drilling diameter 45-90mm, 3m depth per time drilling.
Drilling speed: 3-5min/m for hard rock, 1min can drill 1m depth for soft rock.
Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker

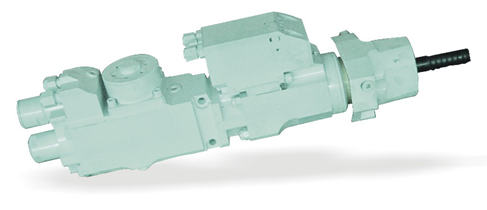

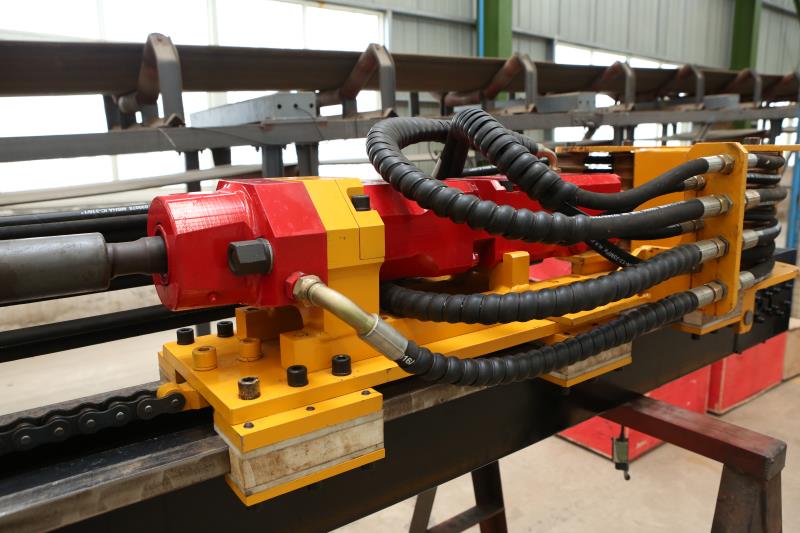

PD 90 Hydraulic Drifter:

PD-90 EXCAVATOR MOUNTED ROCK DRILL-ProDrill

Technical Parameter for PD90 Hydraulic Drifter:

Item	Description		Unite	Parameter
1	Import parameter	Import Oil Pressure	Mpa	16-19
2		Import Rate	L/min	55-65
3		Import Frequency	Hz	34-50
4		Import Energy	J	300
5	Rotation Parameter	Rotation Oil Pressure	Mpa	4.5-15
6		Rotation Rate	L/min	40-70
8		Maximum Torque	Nm	100-300
11		Net Weight	Kg	115
13		Drilling hole Dia	mm	38-89
14		Drilling depth	m	≦15

2.PD 90 Rock Drill Set:

The PD90 excavator drill attachment set included with a T45-3660mm drill rod , and a T45-Φ102mm drill bit,

a screw air compressor set, a 5.2 m propulsion rail (total length 6.0 m), and a spare box.

1) 1PC/ PD-90 Excavator Mounted Rock Drill with hydraulic Driven Compressor 3m3，0.8Mpa. Excavator 20 Tons Required,One can enter the rod 2 meters deep, hydraulic drifter is China-made 300 type hydraulic rock drill, aperture 64-102mm,like JCB210 with YQ30 HYDRAULIC screw air compressor.

2) Rock Drill Attachment Arm Length : Rail length 5.2 meters, total length 6.0 meters

3) Without dust collection system.

4) PD90 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.

5) The rate of the Pump can reach 200L/min, drilling diameter 45-102mm, 3m depth per time drilling. Drilling speed: 1.5-3min/m for hard rock, 1min can drill 1m depth for soft rock

Technical Parameter for PD90 Set:

Product model	PD 90
Rock hardness	f=6-18
Drilling depth	2m
Weight	1100kg
Hydraulic Drifter	HYD300
Impact power	15KW
Impact Frequency	34-50HZ
Water flushing flow	40L/min
Water flushing Pressure	1MPa
Air flushing	4.0m³/min
Air flushing pressure	6-10bar
Rod type	R32/T38/T45/T51
Drilling Diameter	38-102mm
Size	6000×1250×1700mm
Excavator	≥15T

YQ30

PD-90 EXCAVATOR MOUNTED ROCK DRILL-ProDrill

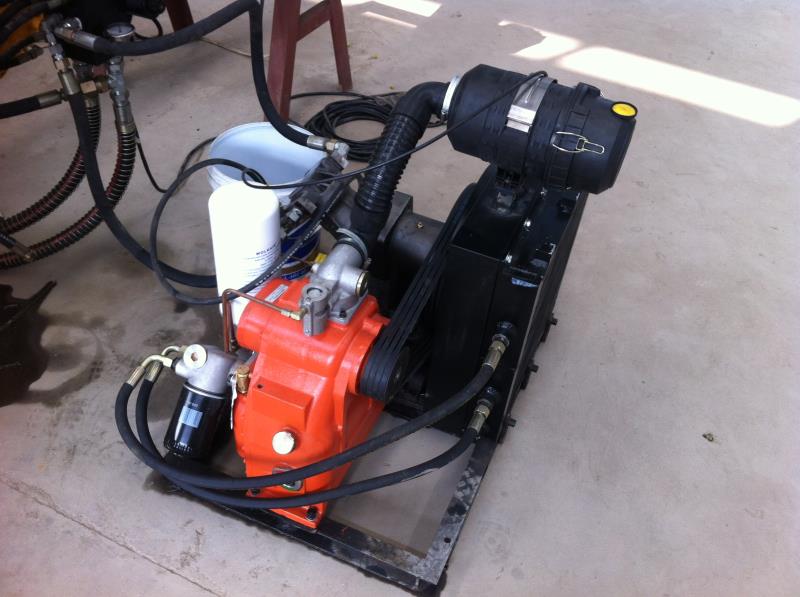

YQ30 air compressor

PD-90 EXCAVATOR MOUNTED ROCK DRILL-ProDrill

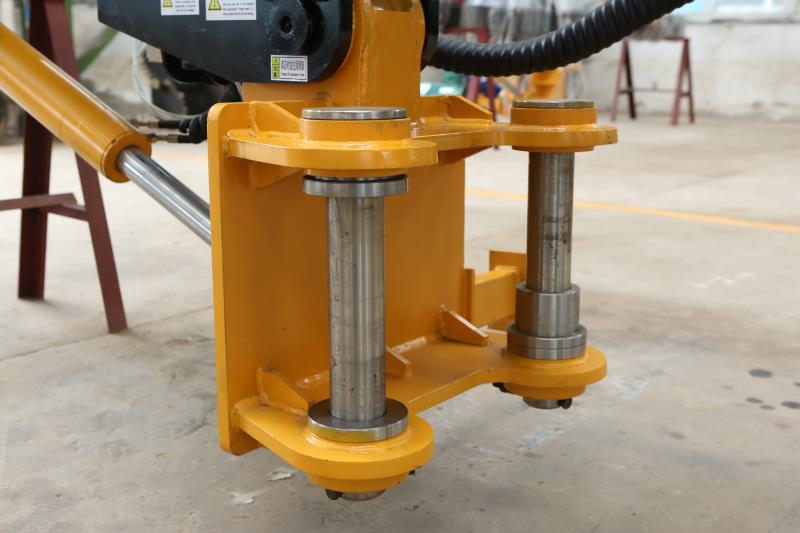

Quick Hitch

PD-90 EXCAVATOR MOUNTED ROCK DRILL-ProDrill

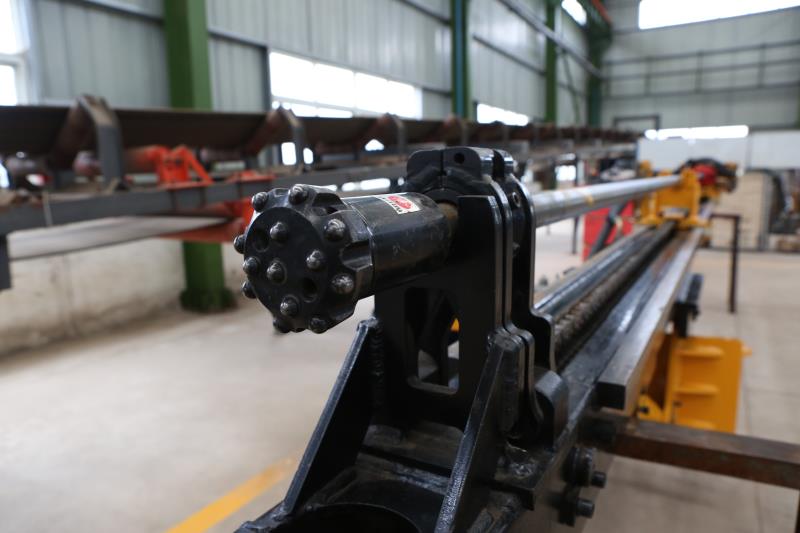

T45 -89 mm button bit,3660mm extension rod

PD-90 EXCAVATOR MOUNTED ROCK DRILL-ProDrill

3.Consignation of Excavated Mounted
(1) Multi function rail set
(2) Imported hydraulic drifter
(3) Moving System
(4) Dust collection
(5) Rock drilling tools
(6) Piston type air compressor

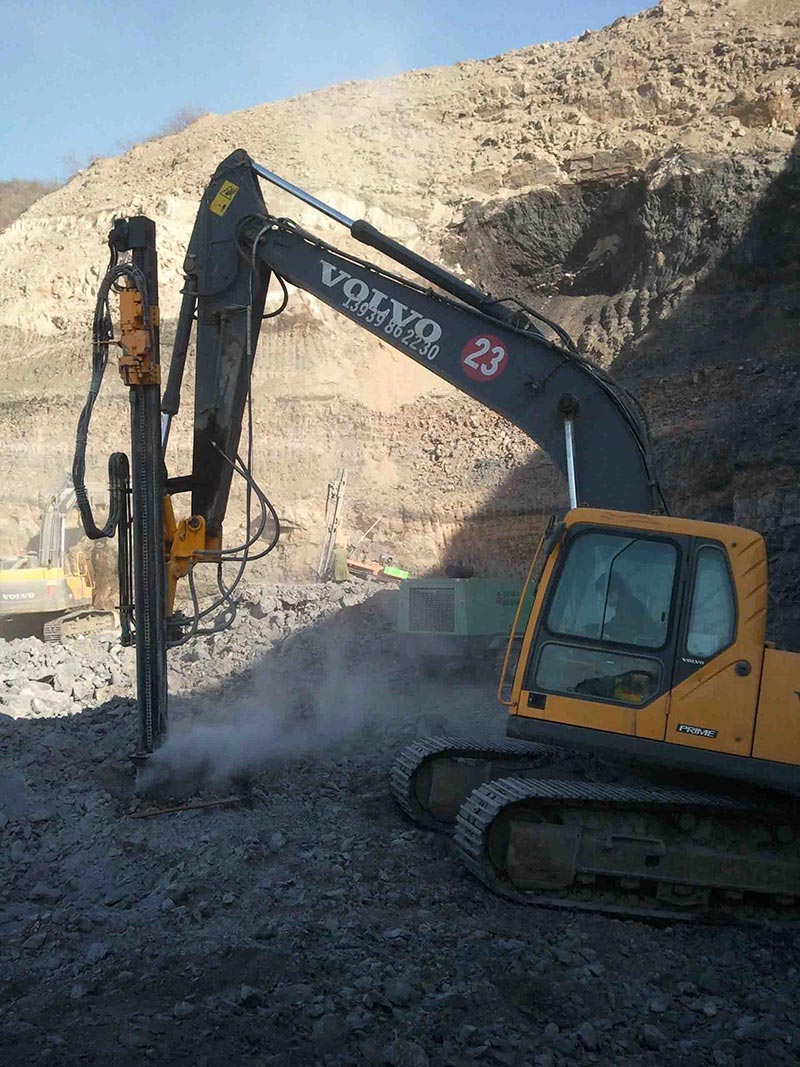

4.PD90 Excavator Mounted Rock Drill
