PD45 Excavator mounted rock drilling attachments

PD45 Excavator Mounted rock drill suit to the 15-20 tons excavator mounted machines.
The rate of the Pump can reach 200L/min, drilling diameter 45-64mm, 3m depth per time drilling.
Drilling speed: 3-5min/m for hard rock, 1min can drill 1m depth for soft rock.
Excavator mounted rock drill can use the same type of hydraulic oil pipe line as hydraulic breaker.
It can replace traditional air drill and the air pick, have the advantages of high adaptability, Anti-jamming design, dust collect system, can punch over-sized hole.

Description

PD45 Excavator mounted rock drilling attachments

The PD45 excavator rock drill attachment set included with a R32-3660mm drill rod , a R32-Φ45 drill bit,
a Diesel-moving piston air compressor set, a 4.8m propulsion rail (total length 5.5 m, and a spare box.
1) 1PC/ PD-45 Excavator Mounted Rock Drill with Diesel Driven Compressor 3.5 m³/min，0.7Mpa. Excavator 8 Tons Required, like PC70 CAT308.5.
One can enter the rod 3 meters deep, hydraulic drifter is China-made 200 type hydraulic rock drill, aperture 33-64mm,
with ACL3.5/7 Diesel-moving piston air compressor.
2) Rock Drill Attachment Arm Length : Rail length4.8meters, total length 5.5 meters
3) Without dust collection system.

4) PD45 Excavator Mounted rock drill suit to the 6 tons excavator mounted machines.
5) The rate of the Pump can reach 100L/min, drilling hole diameter 33-64mm, 3m depth per time drilling.
Drilling speed: 0.7-1.0m/min for hard rock, 1min can drill 1-1.5m depth for soft rock

1.PD45 Rock Drill Set

PD45 Excavator mounted rock drilling attachments-ProDrill

PD45 Rock Drill Technical Datasheet

Products type	PD45
Available Rigidity Rock	F=6-18
Drill Scope	32-64mm
Drill Speed	500-1000mm/min
Lowest Horizontal Hole Height	250mm
Once Propel Travel	3.2m
Oil Pressure	≤16Mpa
Compressor Type	1.8m³-3.2m³
Drifter Weight	90kg
Whole Weight	1.2t

Excavator mounted rock drilling attachments are designed to be used in various places such as drilling and blasting, quarrying & Mining, rock and concrete demolition, municipal engineering construction in the city, etc. Pro Drill rock drills’ percussion hour to engine is exceptionally good at 60 %, which is substantially higher than what can be achieved from conventional drilling rigs. It can be a good choice where other solutions fail to drill holes without the excavator.

Besides, Pro Drill Excavator Drill can also be used as hydraulic rock splitter to demolish over-sized rock and huge concrete building removal.

At present, We have two domestic and imported PD45 Hydraulic Drifters respectively for choices:

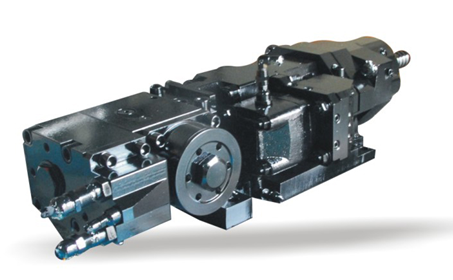

2.PD45 Hydraulic Drifters

Technical Parameter for PD45 Hydraulic Drifter

Item	Description		Unit	Parameter
1	Import Parameter	Import Oil Pressure	Mpa	14-16
2		Import Rate	L/min	30-45
3		Import Frequency	Hz	34-67
4		Import Energy	J	200
5	Rotation Parameter	Rotation Oil Pressure	Mpa	4.5-15
6		Rotation Rate	L/min	40-70
8		Maximum Torque	Nm	95
11		Net Weight	Kg	27-64
13		Drilling hole Dia	mm	32-45
14		Drilling depth	m	≦15

PD45 Excavator mounted rock drilling attachments-ProDrill

3.PD45 Excavator Mounted Rock

PD45 Excavator mounted rock drilling attachments-ProDrill
4. Consignation of Excavated Mounted
(1) Multi function rail set
(2) Imported hydraulic drifter
(3) Moving System
(4) Dust collection
(5) Rock drilling tools
(6) Piston type air compressor
