YN27C Gasoline Machine for Rock Drill/Jack Hammer

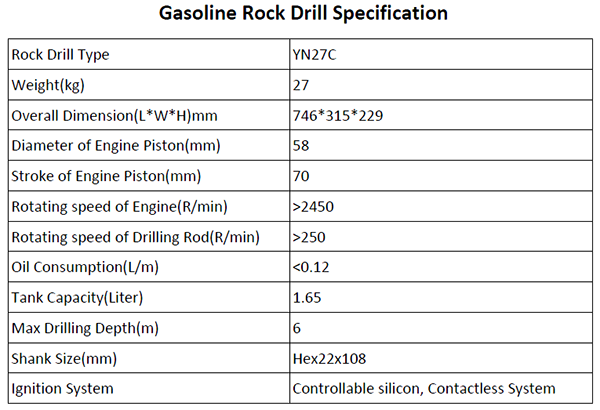

- Rock Drill Model: YN27C
- Function: Rock Drill/Jack Hammer
- Weight: 27KG
- Overall Dimension: L746*W315*H229mm
- Diameter of Engine Piston: 58mm
- Stroke of Engine Piston: 70mm
- Rotating Speed of Engine: >2450 R/min
- Rotating Speed of Drilling Rod: >250 R/min
- Oil Consumption: <0.12 L/m
- Tank Capacity: 1.65 L
- Max Drilling Depth: 6m
- Shank Size: Hex22*108mm
- Ignition System: Controllable Silicon, Contactless System
YN27C Internal Combustion Rock Drill / PETROL DRIVEN ROCK DRILL MACHINE for Drilling and Jack Hammer

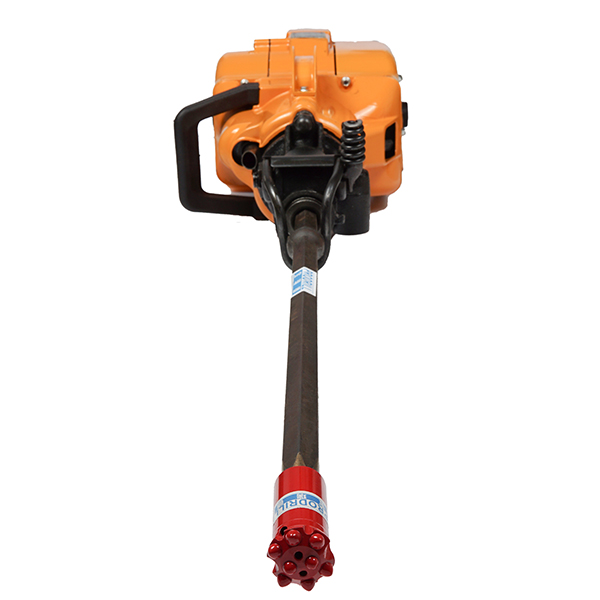

YN27C with Tapered Drill Rod L600mm and Tapered Drill Bit 34mm:
Rock drilling tools manufacturer ProDrill: YN27C gasoline rock drills or petrol driven rock drill machine is powered by gasoline engine, without using air compressor, a very efficient machine with the characters that the structure is very compact, less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.
Other type also available: YN27A,YN28,YN30A,YN30W

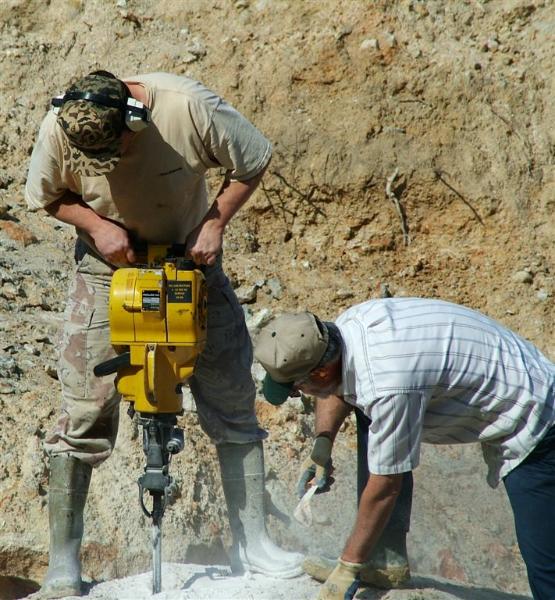

YN27C Gasoline Drill / Internal Combustion rock drill/jack hammer machine at work site:

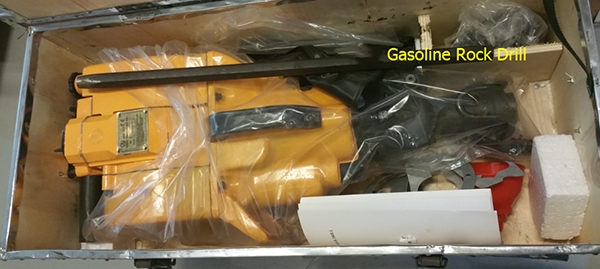

YN27C Gasoline Rock Drills packaging

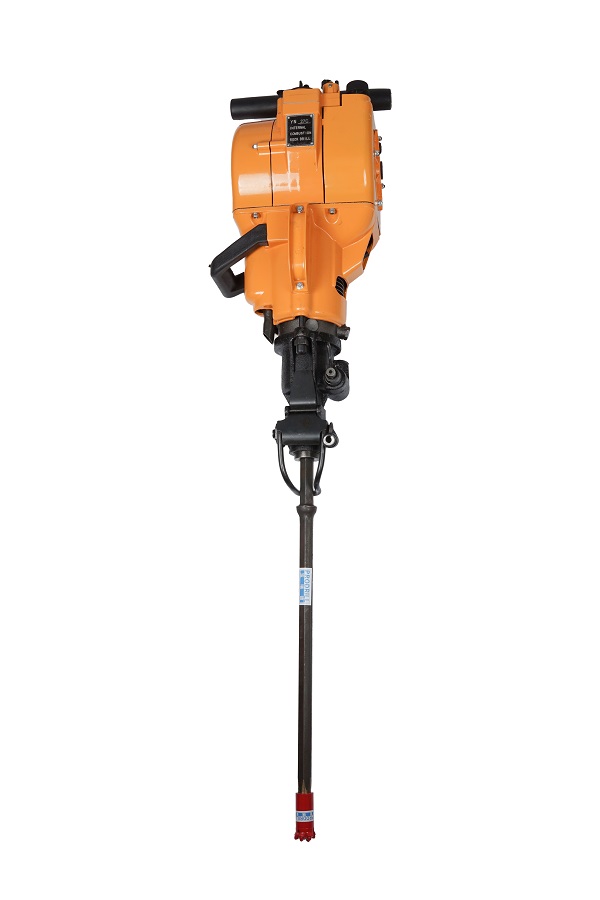

YN27C Gasoline Rock Drills
For PDF files please click:
Related products
-
Y3-32-722-76-Tapered Chisel Bit
- Diameter: 32mm
- Length: 76mm
- Carbide Dimension: 12mm*8mm
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year , tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory , Offers industry-leading strength and penetration rates for more productivity . Excellent straightness and hole clean quality , Get max . drilling performance.
-
Q9-51-R32 Threaded Button Bit Drilling accessories for tunneling,
- Thread: R32
- Diameter: 51mm
- Gauge: 6*10mm
- Front: 3*9mm
- Skirt Design: Standard
- Face Design: Uniface
- Carbide Design: Dome
- Weight: 0.93kgs
-
Y1-34-722-76 Tapered Chisel Bit
- Code No.: Y1-34-722-76
- Diameter: 34mm
- Length: 76mm
- Tapered Degree: 7°
- Carbide Dimension: 12mm*8mm
- Water Holes: 2 on side
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year , tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory , Offers industry-leading strength and penetration rates for more productivity . Excellent straightness and hole clean quality , Get max . drilling performance.
