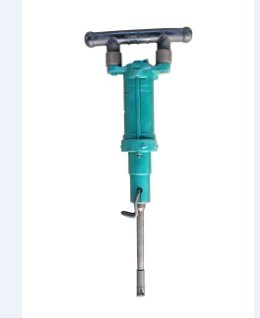

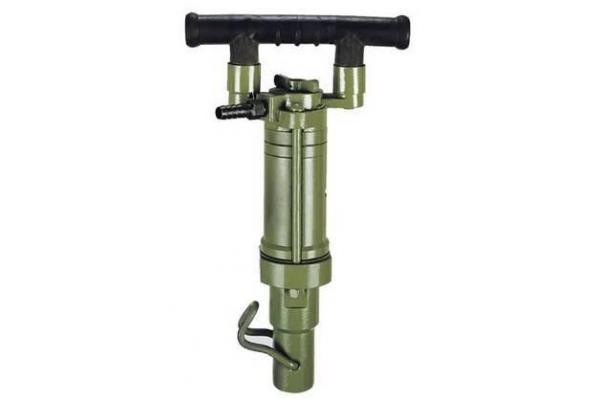

Y10 Hand Held Rock Drills
Prodamo produces three types of portable rock drilling machines, all suitable for both horizontal and vertical drilling in medium-hardness and hard rock, used in open quarries, mining, road construction and others. These machines are also equipped with FY200B lubricating oil, which reduces the automatic friction factor when used.
Y10 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone working, stone trimming, and 2nd splitting blocks.
Product features:
Model Y10 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
Specification:
| Model | Y6 | Y8 | Y10 | Y20 | Y19A | Y24 | Y26 | Y28 |
| Weight(kg) | 6 | 6 | 10 | 18 | 19 | 24 | 26 | 26 |
| Air consumption (L/s) | ≤9.5 | <9.0 | ≤9 | 25 | 43 | ≤50 | ≤47 | |
| length (mm) | 426 | 428 | 458 | 605 | 600 | 604 | 650 | 661 |
| shank (mm) | 15*88 | 15*88 | 15*88 | 22*108 | 22*108 | 22*108 | 22(25)*108 | 22*108 |
| Bore Dia (mm) | 20 | 20-30 | 20-30 | 30-42 | 30-42 | 30-42 | 30-42 | 34-42 |
| Drill depth (m) | 0.5 | 0.5 | 0.5 | 3 | 5 | 5 | 5 | 5 |
| Impact rate (Hz) | 51 | 51 | ≥51 | 34 | 35 | 30 | 27 | ≥28 |
| Hose connection(mm) | 13 | 16 or19 | 19 | 19 | 19 | |||
| Air pressure(Mpa) | 0.4-0.63 | 0.2-0.3 | 0.4 | 0.4 | 0.4 |
