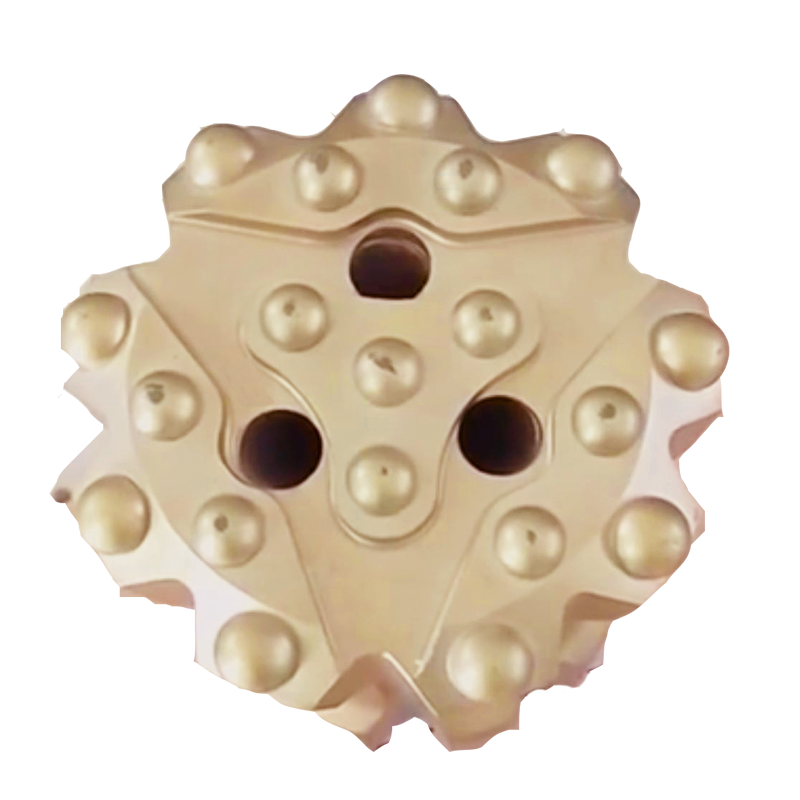

Q19-115-GT60-RC Threaded Button Bit Uniface

  • Code No.: Q19-115-GT60
  • Thread: GT60
  • Diameter: 115mm
  • Gauge Buttons: 9*14mm
  • Front Buttons: 10*12mm
  • Skirt Design: Standard
  • Carbide Design: Dome
  • Face Design: Uniface
Category:

Rock drilling tools manufacturer ProDrill offers rock drill bits: GT60 Threaded Button Bits are one of the most important size for benching and long hole drilling underground

Q19-115-GT60-RC Threaded Button Bit Uniface-ProDrill

GT60 Threaded Button Bit
Diameter: 89mm, 93mm, 102mm, 115mm, 127mm

Q19-115-GT60-RC Threaded Button Bit Uniface-ProDrill

Skirt Body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Uniface GT60 Threaded Drill Bit
Carbide Design: Dome, ballistic, semi-ballistic/parabolic
Retrac body Threaded Drill BitGT60 Threaded Button BitGT60 threaded button bitGT60 Thread Retrac Button Bit
Used in bench drilling, underground long hole drilling to match extension drill rod, heavy duty top hammer.
20 Semi-ballistic carbide inserts GT60 threaded dill bit with flat face design, 115mm diameter with extension drill steel for bench drilling and underground long hole drilling.



For more details please watch PDF online: GT60 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
