Q18-89-ST58-RC-Threaded Button Bit

ST-58 thread type is double thread design for easy knock off drill bit, ST-58 means diameter 58 mm with double T shape thread, thread distance 24 mm, this is extra heavy duty drill bit for jump top hammer. Drill rod use guide tube for a match.

Category: Tags:



ST58 Threaded Button Bits are the most important size for benching and long hole drilling underground, this type of rock drill bits manufactured by rock drilling tools factory ProDrill.

  • Code No.: Q18-89-ST58
  • Thread: ST58
  • Diameter: 89mm
  • Gauge Buttons: 9*12mm
  • Front Buttons: 9*11mm
  • Skirt Design: Retrac
  • Weight: 5.2KGS
  • Carbide Design: Parabolic/Dome

Q18-89-ST58-RC-Threaded Button Bit-ProDrill

Diameter: 89mm, 93mm, 102mm, 115mm, 127mm
Skirt Body: retrac, and normal, straightrac
Face type: flat, uniface, drop center
Carbide Design: Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling
To match extension MF rod, MM rod heavy duty top hammer.
ST58-93 Threaded Button Bit

Q18-89-ST58-RC-Threaded Button Bit-ProDrill

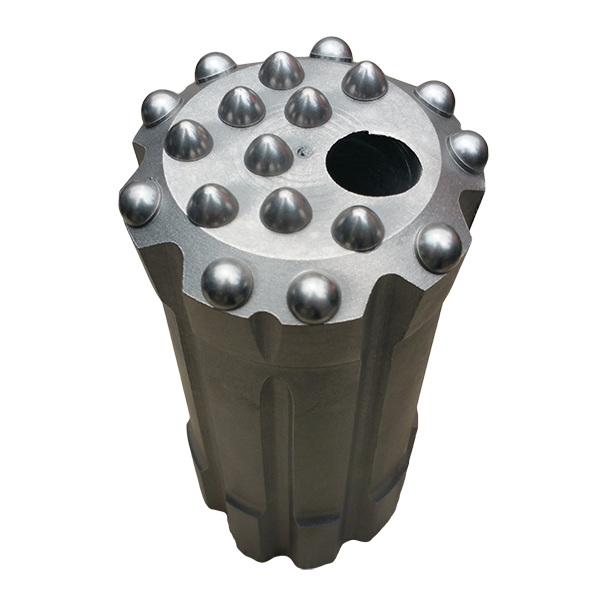

18 Dome/Semi-ballistic carbide inserts ST58 Threaded drill bits with flat face design, 89 mm diameter with extension rod for heavy duty drilling.

Q18-89-ST58-RC-Threaded Button Bit-ProDrill

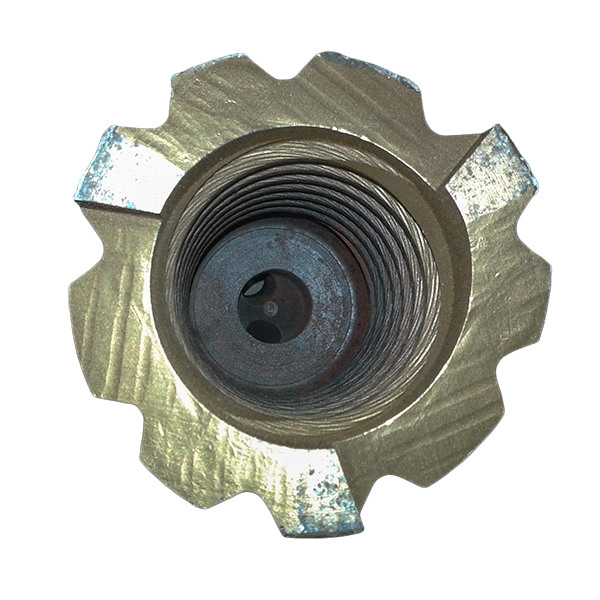

A look inside of ST18 threaded button bit.

Q18-89-ST58-RC-Threaded Button Bit-ProDrill

PDFFor more details please watch PDF online:  ST58 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
