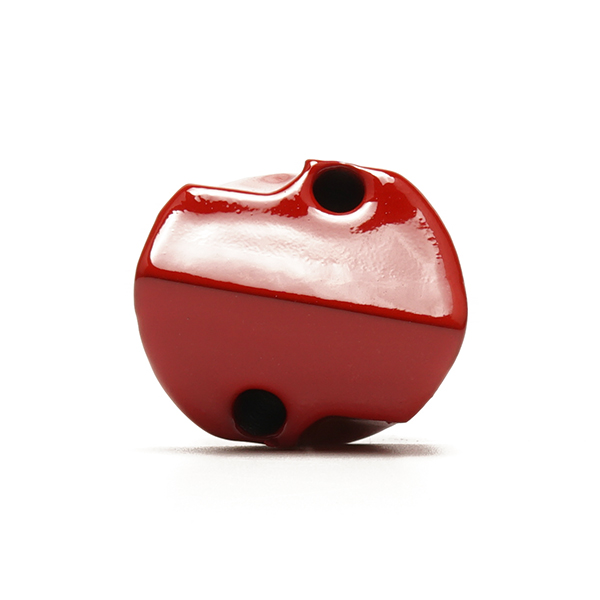

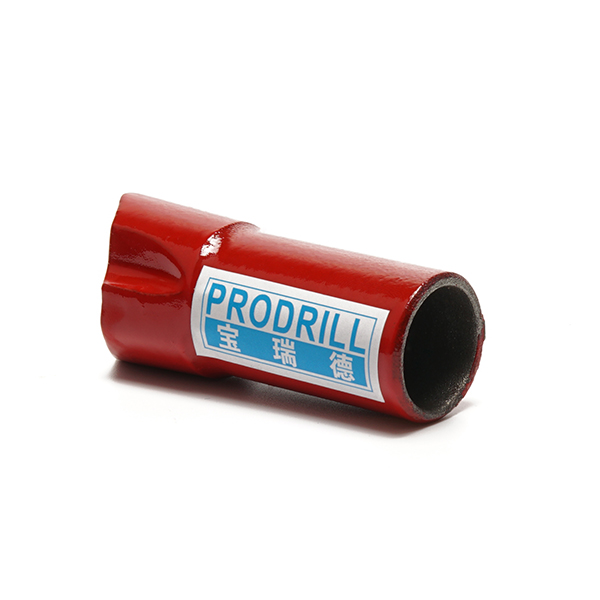

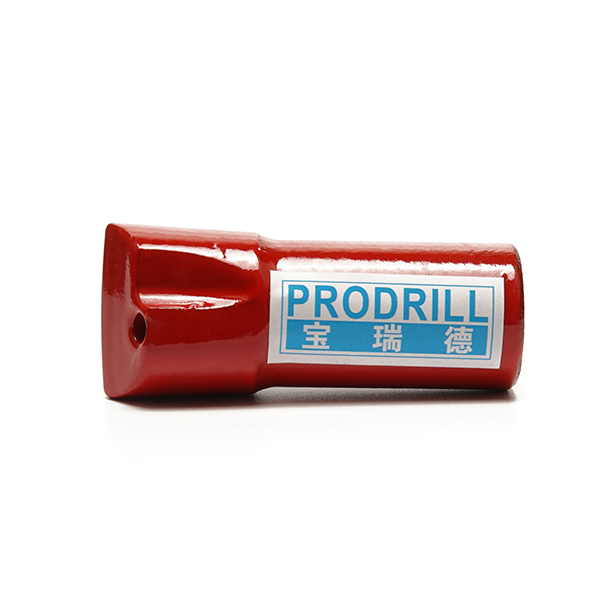

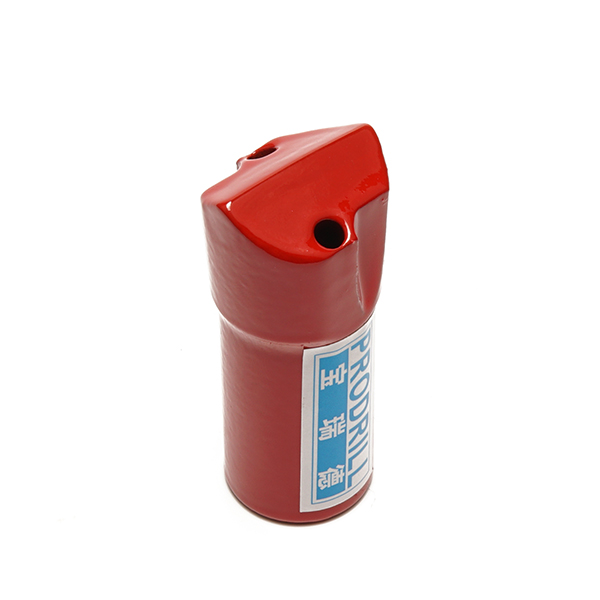

Y3-32-722-76-Tapered Chisel Bit

  • Diameter: 32mm
  • Length: 76mm
  • Carbide Dimension: 12mm*8mm

Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year , tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory , Offers industry-leading strength and penetration rates for more productivity . Excellent straightness and hole clean quality , Get max . drilling performance.

Y3-32-722-76-Tapered Chisel Bit-ProDrill

Tapered chisel bits from rock drilling tools manufacturer ProDrill, is suitable for mining of black metal mines(such as iron mine/ manganese ore), nonferrous metal mine(such as gold/silver/copper ore), marble and granite etc. Its drilling depth usually is 15m-18m in case of hardness grade F8-14. At present, we offer rock drill bits including Horse Shoe Bits and Chisel bits. Chisel is more popular in Saudi Arabia, and it’s suitable for hard rock drilling. Y3-32-722-76-Tapered Chisel Bit-ProDrill

It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, like Y6, Y10, Y24, major use in natural dimensional stone quarry for small hole drilling, block’s trimming and 2nd splitting for small blocks. To match Hexagonal 22 mm and Hexagonal 12 mm’s tapered drill steel with 4/6/7/11/12 degree

Y3-32-722-76-Tapered Chisel Bit-ProDrill Y3-32-722-76-Tapered Chisel Bit-ProDrill

All tapered chisel bit are made with high quality of raw material through special heat treatment, The deliver capacity are very strong and can completely meet customer’s requirements on delivery design.

Y3-32-722-76-Tapered Chisel Bit-ProDrill

packed in the plastic box

Y3-32-722-76-Tapered Chisel Bit-ProDrill

Y3-32-722-76-Tapered Chisel Bit-ProDrill

For more details please watch PDF online: Tapered Chisel Bits for Small Hole Drilling Catalogue
