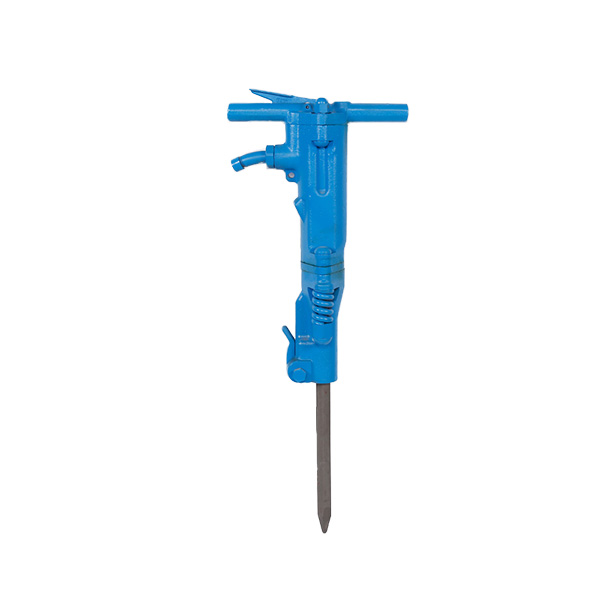

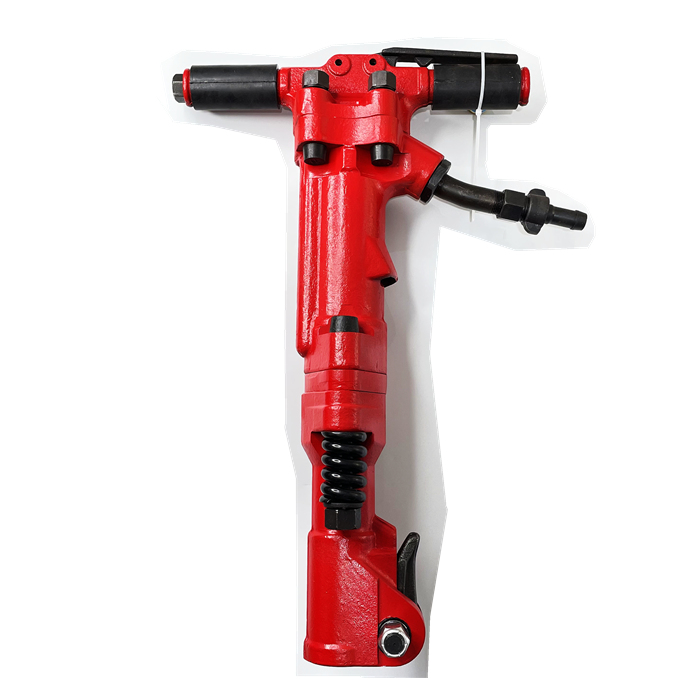

TPB-60 hand hold jack hammer

A pneumatic jackhammer, also known as a pneumatic drill or pneumatic hammeris a jackhammer that uses compressed air as the power source. The air supply usually comes from a portable air compressor driven by a diesel engine. Reciprocating compressors were formerly used. The unit comprised a reciprocating compressor driven, through a centrifugal clutch, by a diesel engine. The engine’s governor provided only two speeds:

1.idling, when the clutch was disengaged

2.maximum, when the clutch was engaged and the compressor was running

3.wet weight 30KG,gross weight 40KG.

4.packing:76CM *48CM *21CM

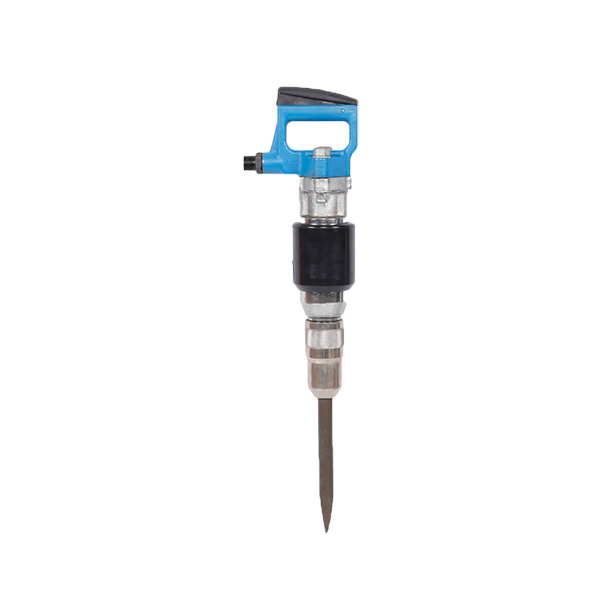

Pneumatic pick is lighter, more flexible and convenient operation. It’s suitable for operation all around of work, especially in narrow space, upper or climbing direction.

It can stop working automatically when the solid object is broken.

It’s widely used in coal mining, soft rock, digging digging slots, breaking concrete, frozen earth in constructionand installation engineering or constructing

TPB-60 hand hold jack hammer-ProDrill

Product Main Features:

  1. This kind of machine is designed for block secondary splitting or squaring specially,
  2. It can be instead of the dynamite blasting or traditional manual splitting device completely
  3. Ergonomic design can make operator fell comfortable and also improve the working efficiency
  4. Flexible operation. Huge impact, appropriate frequency, low gas consumption;
  5. The key parts of the hammer body, valve set and so on adopt special alloy steel, wear-resisting, strong impact resistant ability.
  6. The utility model can be widely used for the construction and demolition of the rein forced concrete, the demolition of the building part, the demolition of the brige and the underwater demolition

TPB-60 hand hold jack hammer-ProDrill

Technical Parameters:

Model B10 B37 B47 B50 B67C
Weight 10Kg 17Kg 21.5Kg 18Kg 39Kg
Length 520mm 580mm 550mm 660mm 686mm
Working pressure 0.63Mpa 0.63Mpa 0.63Mpa 0.63Mpa 0.63Mpa
SCFM 22L/S 22L/S 23L/S 33L/S 55L/S
Air pipe inner dia 26×80 mm 30×87 mm 25×108 mm 25×108 mm 32×152 mm



For more detials,you can check: TPB60-1
