Q14-89-T45-RC Threaded Button Bit

Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year, Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max.drilling performance for rock drills with long life to save up fuel cost rate.

Category:
  • Code No.: Q14-89-T45-RC
  • Thread: T45
  • Diameter: 89mm
  • Gauge Buttons: 8
  • Front Buttons: 6
  • Skirt Design: Retrac
  • Face Design: Drop Center
  • Carbide Design: Dome

Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground

T45 Threaded Button Bit

Q14-89-T45-RC Threaded Button Bit-ProDrill

Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, drop Center
Carbide shape: Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

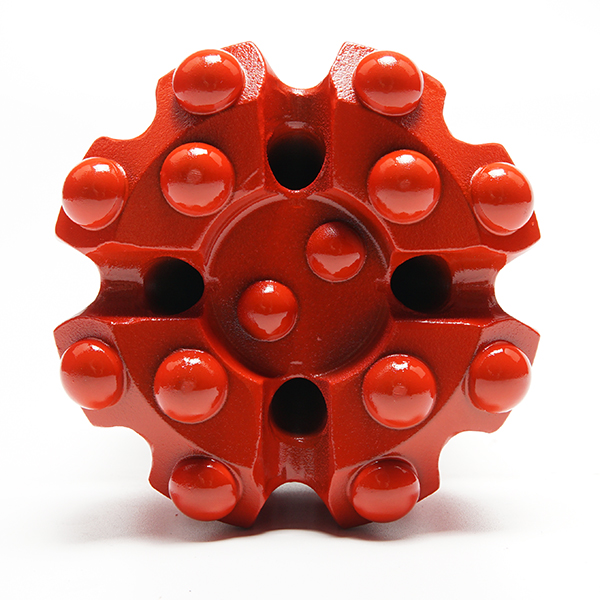

Drop Center Face T45 Threaded Drill Bit
T45 Threaded Drill Bit with drop center face design.

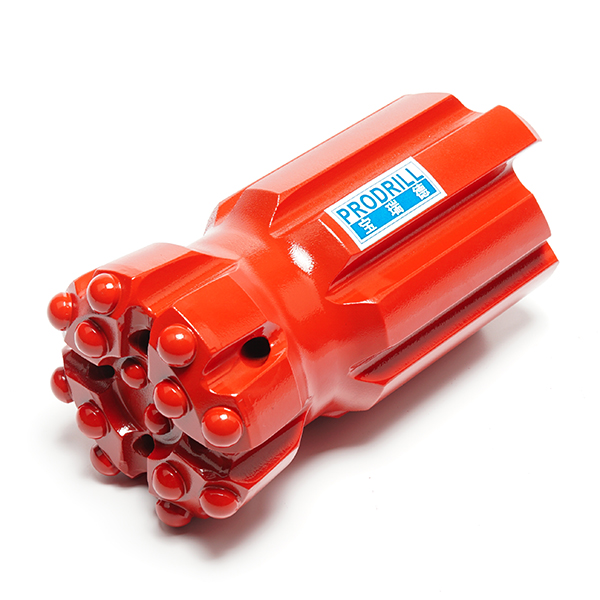

T45 Threaded Dome Button BitT45 Retrac Body Threaded Button Bit

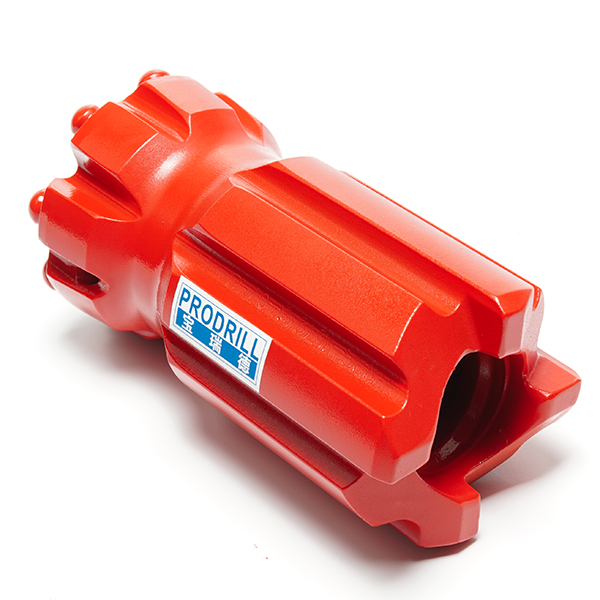

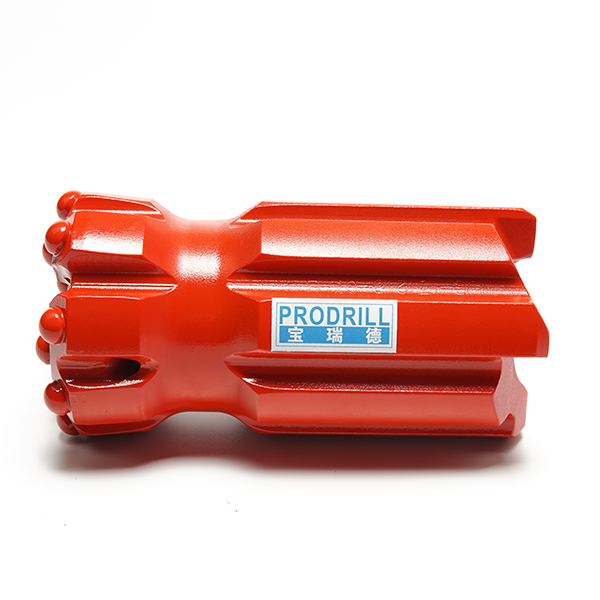

T45 Retrac Body Threaded Button Bit
14 Dome Buttons, 89mm Diamter, T45 Thread, Retrac body Top Hammer Bit to match with extension drill rods for bench drilling and underground long hole drilling.

For more details please watch PDF online: T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
