Q14-115-T51 Threaded Button Bit

  • Code No.: Q14-115-T51
  • Thread: T51
  • Diameter: 115mm
  • Gauge Buttons: 8
  • Front Buttons: 6
  • Carbide Design: Dome, Ballistic
  • Face Design: Convex
  • Skirt Design: Standard
Category:

Q14-115-T51 Threaded Button Bit-ProDrill



Rock drilling tools manufacturer ProDrill manufactures high quality rock drill bits, one of the most important size for benching and long-hole drilling underground is T51 Threaded Button Bit

Q14-115-T51 Threaded Button Bit-ProDrill

Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, Drop Center
Carbide shape:  Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer drilling tools.
T51 Threaded Button BitT51 Threaded Button BitT51 Threaded Button Bit

Q14-115-T51 Threaded Button Bit-ProDrill



8 Dome, 6Ballistic carbide inserts T51 threaded drill bit with drop center face design, 115 mm diameter match with extension drill steels.

PDFFor more details please watch PDF online: T51 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue

Q14-115-T51 Threaded Button Bit-ProDrill

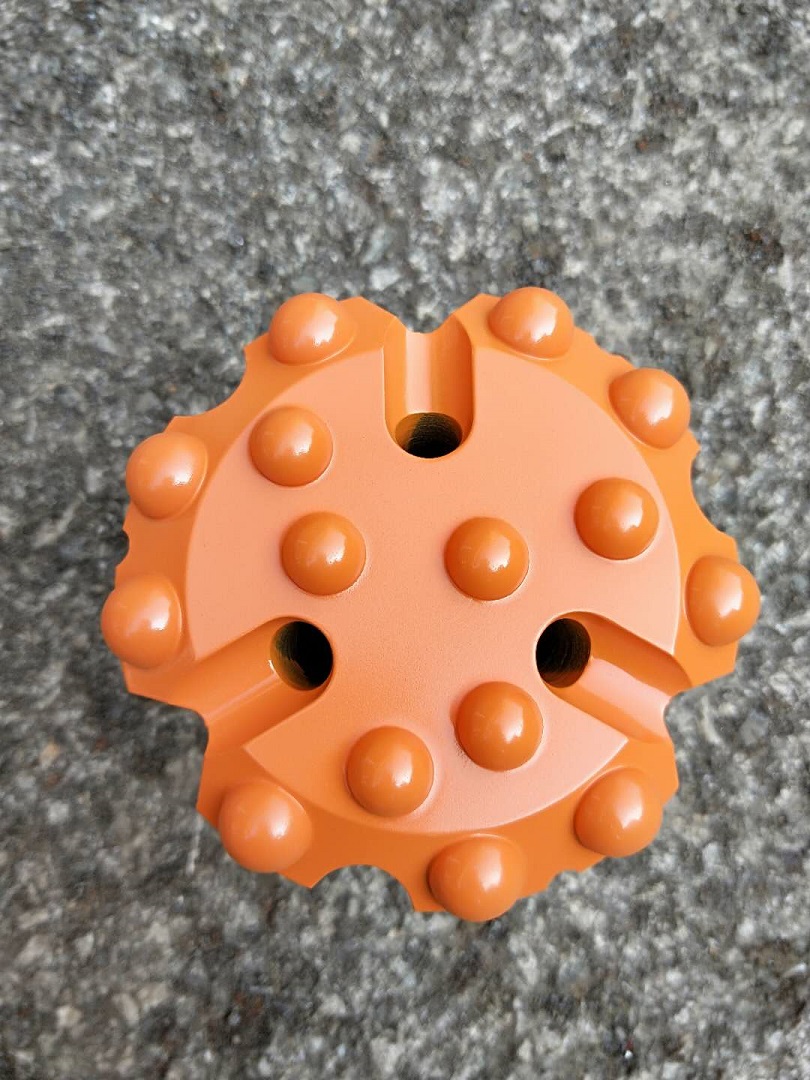

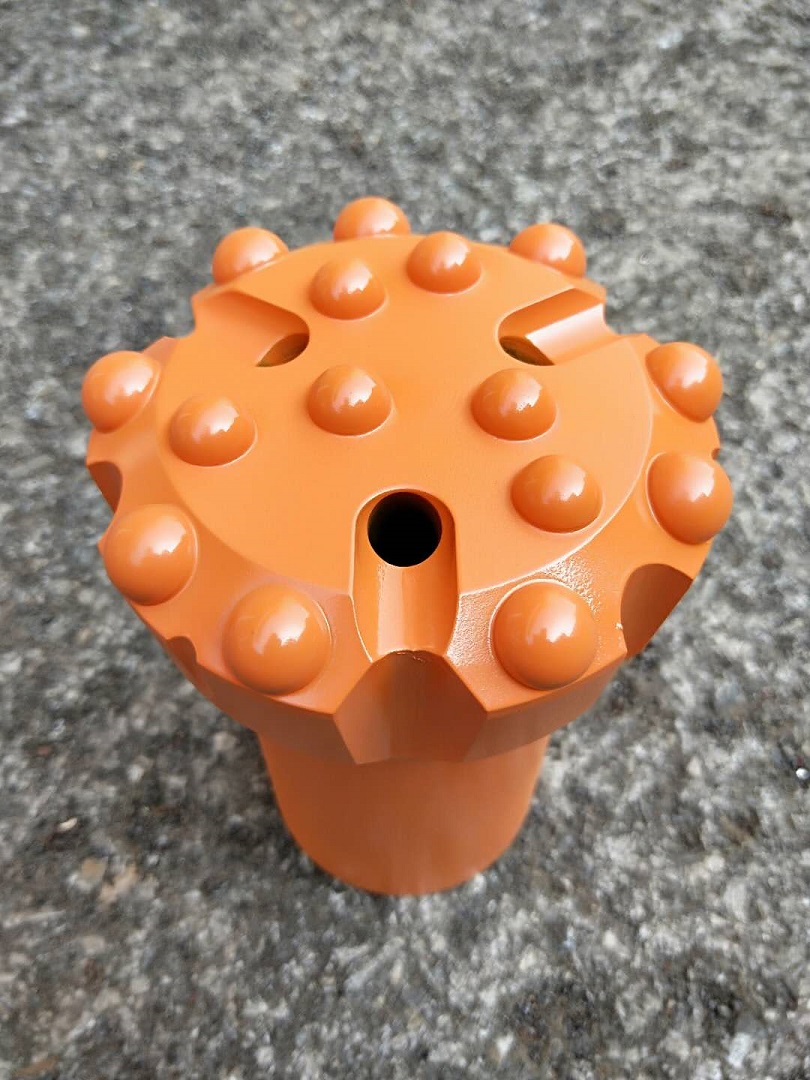

T51-115-15button FF HD spherical button bit   carbide config. 16mm *9+14mm *6

FF :  flat face ,   HD, Heavy-duty .

Q14-115-T51 Threaded Button Bit-ProDrill

Sandvik Top hammer drill rig RANGER DX700 using ProDrill drill bits , showing perfect drilling performance of higher penetration rate , longer life, lower cost.

Q14-115-T51 Threaded Button Bit-ProDrill

Video for T51-115-15button FF HD spherical button bit   carbide config. 16mm *9+14mm *6
