Q12-64-T38 Threaded Button Bit

Rock drilling tools factory ProDrill manufactures rock drill bits: T38 Threaded Button Bits is the most important size for
benching and long-hole drilling underground.
Code No.: Q12-64-T38
Diameter: 64mm
Length: 130mm
Gauge Buttons: 10mm*8
Front Buttons: 10mm*4
Skirt Design: Standard
Carbide Design: Dome
Face Design: Flat
Water Holes: 2 on front
Weight: 1.66kg

Q12-64-T38 Threaded Button Bit-ProDrill

Diameter 64mm 76mm, 89mm,
Skirt body: retrac, and normal,
Face type: flat, uniface, drop center
Carbide shape: Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

Q12-64-T38 Threaded Button Bit-ProDrill

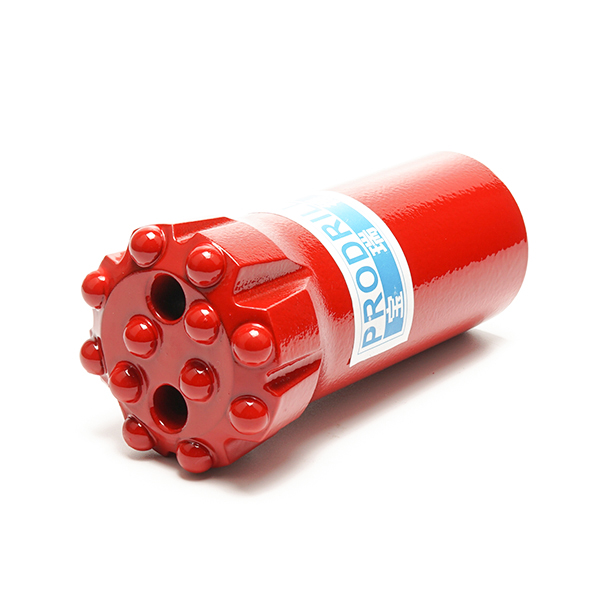

12 Dome carbide inserts T38 threaded drill bits with flat face design, 64mm diameter and normal skirt body for bench
drilling and underground long hole drilling.

Q12-64-T38 Threaded Button Bit-ProDrill Q12-64-T38 Threaded Button Bit-ProDrill Q12-64-T38 Threaded Button Bit-ProDrill

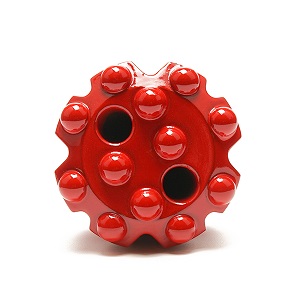

Flat-face design detail of T38-64 threaded button bit, to match with extension drill rods.

Q12-64-T38 Threaded Button Bit-ProDrill

Q12-64-T38 Threaded Button Bit-ProDrill

PDFFor more details please view PDF online: T38DrillBitsforBenchDrillingLongHoleDrillingUndergroundCatalogue
