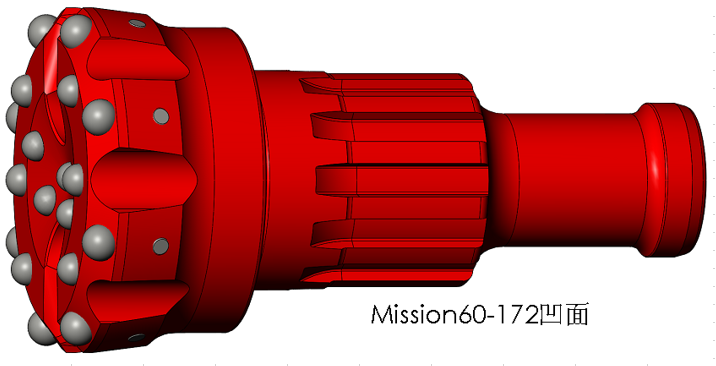

DTH Bit-M60-172

1.Improved steel grade for better fatigue properties
2.Five basic front designs
3.Designs for all rock types

Category:

Rock drilling tools manufacturer ProDrill has a comprehensive range of DTH hammer bits with M shanks type for a various range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.

Rock drill bits Shank types: M 30, M 40, M 50, M 60/65, M 380.

DTH drill bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-305mm)

  • Diameter: 172mm
  • Air Holes No.: 2
  • Gauge Buttons: 8*18mm
  • Face Buttons: 10*16mm
  • Approx. Weight: 29.0KGS
  • Bit Face Type: Concave face
  • Carbide Design: Dome

DTH Bit-M60-172-ProDrill

Concave Face
The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.

DTH Bit-M60-172-ProDrill
