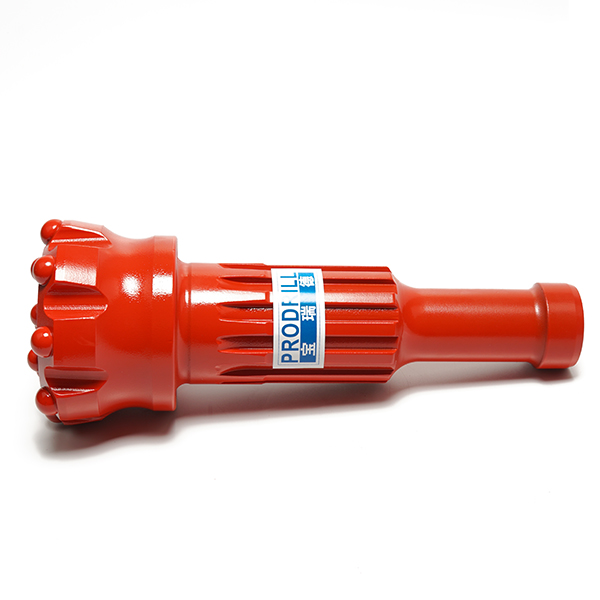

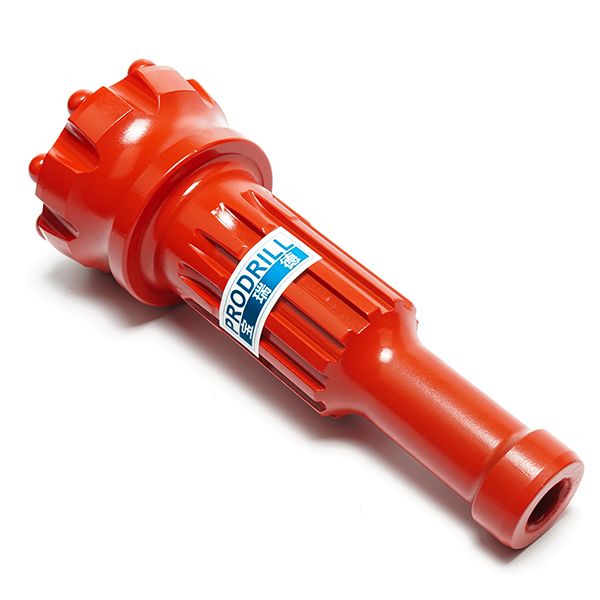

M40-115 DTH Hammer Bit

Rock drilling tools manufacturer ProDrill offers a comprehensive range of DTH drill bits with M shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.

Shank types: M 30, M 40, M 50, M 60/65, M 380.

DTH rock drill bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-305mm)

• Code No.: M40-115
• Diameter: 115mm
• Air Holes: 2
• Gauge Buttons: 8
• Front Button: 6
• Carbide Design: Dome
• Face Design: Flat
• Shank Type: M

Flat Face
An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.

Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

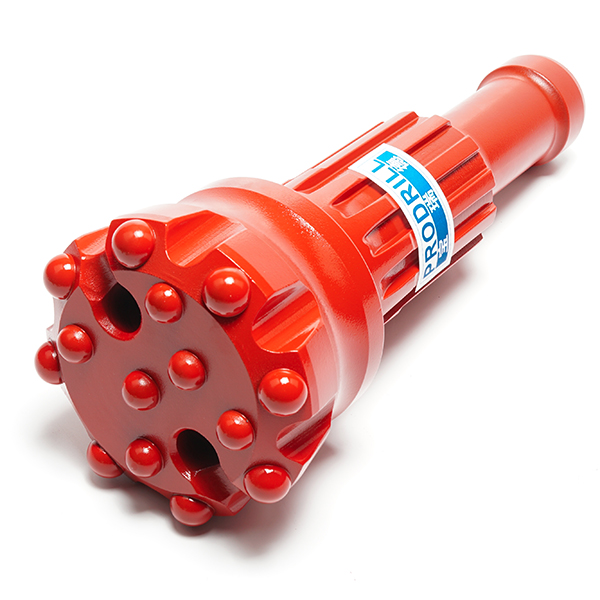

M shank DTH drill bit with flat face,14 dome carbide buttons for blasting bore holes, water well drilling.

PDFFor more details please watch PDF online: DTH hammer bits with M shanks Catalogue
