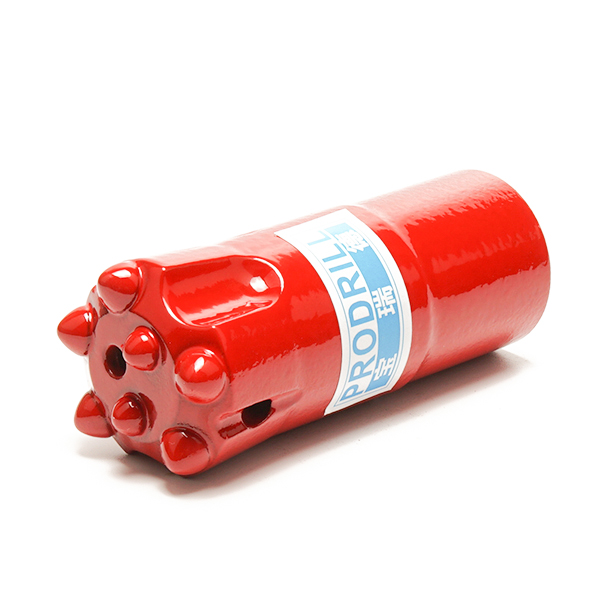

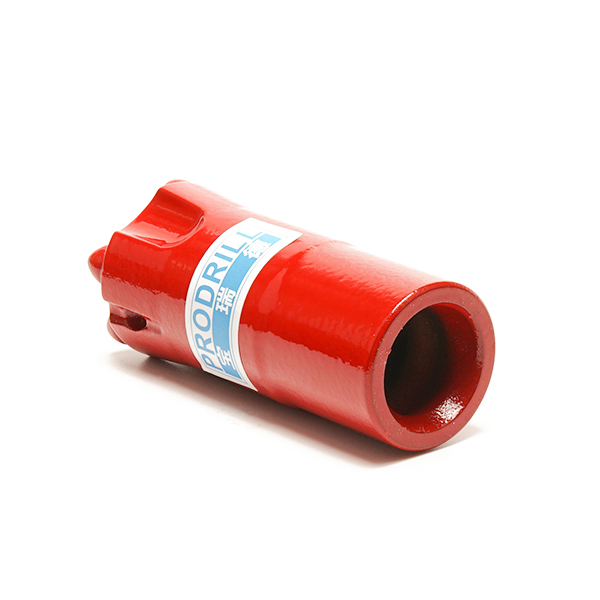

BIT 38 MM SR28(R28) for drifting ,tunneling and stone quarrying
Made from high alloy steel and tungsten carbide as same grade as internationally well-known brand
Apply “hot (thermal) -insertion” processing procedure to insert the buttons as same as internationally well-known brand
Entire CNC processing procedure ensure the quality consistency
Military grade requirements of heat-treatment guarantee durability
Fast penetration rates, and straight and clean hole quality. Long life of drilling holes.
BIT -38MM -SR28(R28) is drilling accessories for fortification R28 series Threaded drill bits used in drifting and tunneling, or dimensional natural stone quarrying
Rock drilling tools manufacturer ProDrill provides a wide of threaded button bit as per different thread type, diameter, skirt body, face, and carbide shape as for your drilling job.
BIT 38 MM SR28(R28) Drilling accessories for fortification
Thread: SR28 Diameter: 38mm
Product code: 125-5038-27,39-20(Atlas Copco)

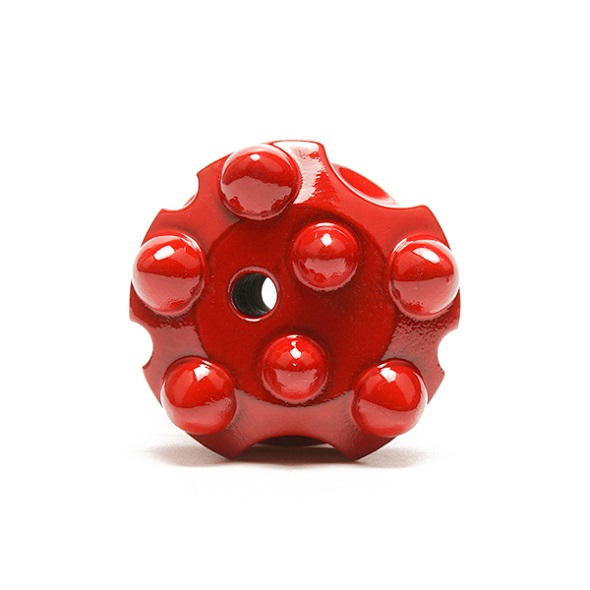

No. Of buttons: 7 | Gauge buttons × gauge button diameter (mm): 5×9
Center buttons × center button diameter (mm): 2×7
Gauge buttons angle° 30° | Side flushing hole 1
Center flushing hole 1 | Weight approx: 0,5 kg.
R22, R25, R28 Threaded Button Bits of rock drill bits.
Diameter 40mm, 41mm, 43mm, 45mm.
7 Semi-ballistic buttons, SR28 Threaded Drill Bit.
R28 series Threaded drill bits used in drifting and tunneling, or dimensional natural stone quarrying. To match shank rod, and MM or MF Hex drifter rod for light-duty top hammer such as Drift HEX rod : R32-H28-SR28(S28) 2600mm,3100mm,3700mm
R28-38 mm, 43mm, 45mm, with MM Drift HEX rod : R32-H28-SR28(S28) 2600mm,3100mm,3700mm work for copper mine in Peru.
For more details please watch PDF online: R28 Threaded Drill Bits for Drifting and Tunneling Catalogue
R32-64mm Retrac Threaded Cross Bit
- Code No.: S1-R32-64-RC
- Diameter: 64mm
- Length: 140mm
- Thread Type: R32
- Skirt Design: Retrac
- Carbide Dimension: 16mm*10mm
- Water Holes: 1 on front, 2 on side
- Weight: 2.28Kg

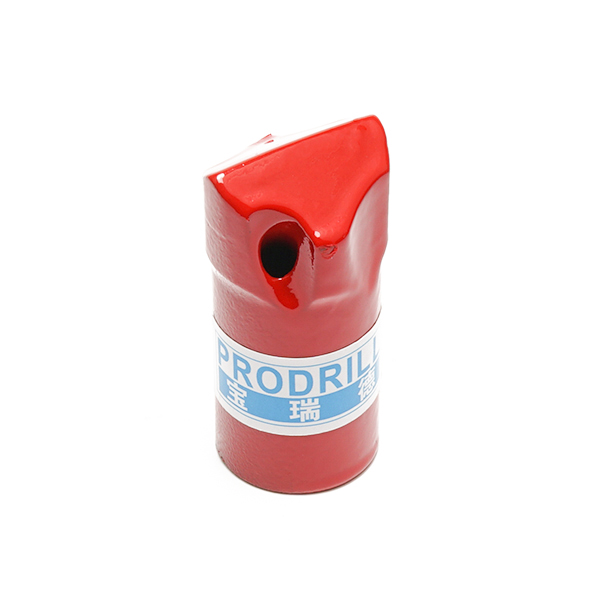

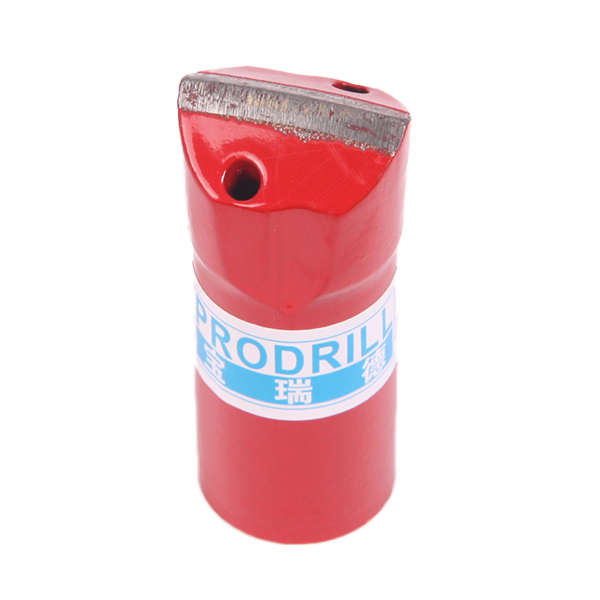

Y2-32-619-67 Tapered Chisel Bit
- Code No.: Y2-32-619-67
- Diameter: 32mm
- Length: 67mm
- Tapered Degree: 6°
- Carbide Dimension: 12mm*8mm
- Water Holes: 2 on side
Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Long year , tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory , Offers industry-leading strength and penetration rates for more productivity . Excellent straightness and hole clean quality , Get max . drilling performance.
Q7-37-R25 Threaded Button Bit
- Code No.: Q7-37-R25
- Thread Type: R25
- Diameter: 38mm
- Length: 90mm
- Gauge Buttons: 9mm*5
- Front Buttons: 7mm*2
- Carbide Design: Semi-ballistic
- Skirt Design: Standard
- Weight: 0.51kg
- Water Holes: 1 on front, 1 on side
