T45-RD46-T45 MM Extension Drill Rod

  • Code No.: MF-T45-Rd46-T45-L700
  • Type: MM
  • Thread: T45-T45
  • Length: 700mm
  • Shape: Round

T45-RD46-T45 MM Extension Drill Rod-ProDrill

Drill Steel Round



It is common practice to bump up the drive end of Extension drill steel for added strength at the rock drill end to accommodate larger diameter and shank adapters. Drill steel of rock drilling tools is available in many standard lengths to match the drill feeds on a multitude of available drifting jumbos. A rock drill bit diameter closer to the steel diameter can be used since the coupling does not enter the hole, this enhances flushing and hole accuracy.



With Hexagon body from 25mm to 38mm (1”-1 1/2”) and Round body from 32mm to 51mm(1 1/4”-2”). Lengths 610mm to 6096mm(2’-20’). Avaliable with all popular international thread forms.





T45-RD46-T45 MM Extension Drill Rod



T45 MM ROD 700MM



MM Extension Drill Rod with T45 Thread



T45-RD46-T45 MM Extension Drill Rod-ProDrill

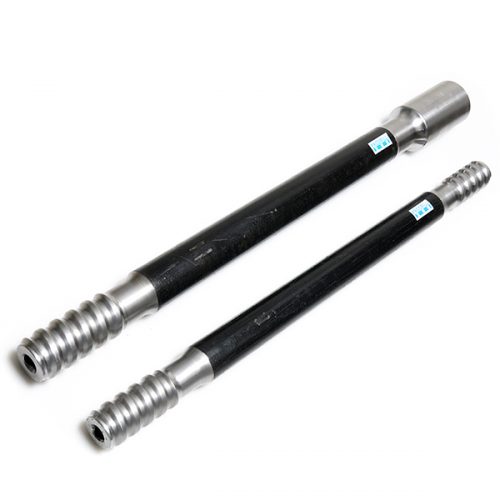

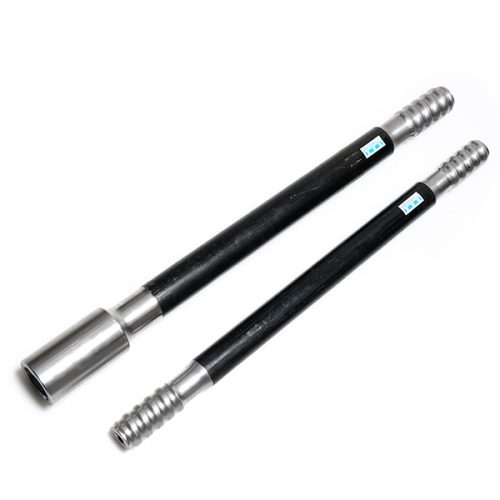

T45-RD46-T45 MM Extension Drill Rod



The advantages of drilling with M/M extension drill steel include: easy handling, quicker uncoupling, tighter connections and the



potential to drill straighter holes.

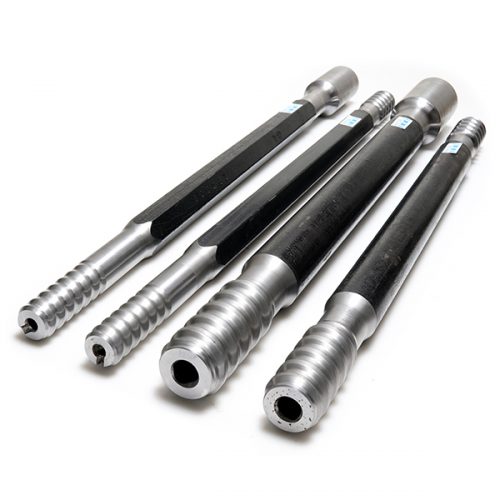

MF/MM Extension Drill Rods

T45-RD46-T45 MM Extension Drill Rod-ProDrill

PDF For more details please watch PDF online: Extension Drilling Rod for Bench Drilling, Long Hole Drilling Underground Catalogue
