MF-T51 Extension Drill Rod

  • Type: MF
  • Thread: T51-T51
  • Length: 700mm, 3050mm, 3660mm, 4270mm etc.
  • Shape: Round



MF-T51 Extension Drill Rod-ProDrill

Drill Steel Round

Code No.: MF-T51-Rd52-T51-L3660
Type: MF
Thread: T51-T51
Length: 3660 mm
Shape: Round



It is common practice to bump up the drive end of drifting drill steel for added strength at the rock drill end to accommodate larger diameter and shank adapters. Drill steel of rock drilling tools is available in many standard lengths to match the drill feeds on a multitude of available drifting jumbos. A rock drill bit diameter closer to the steel diameter can be used since the coupling does not enter the hole, this enhances flushing and hole accuracy.

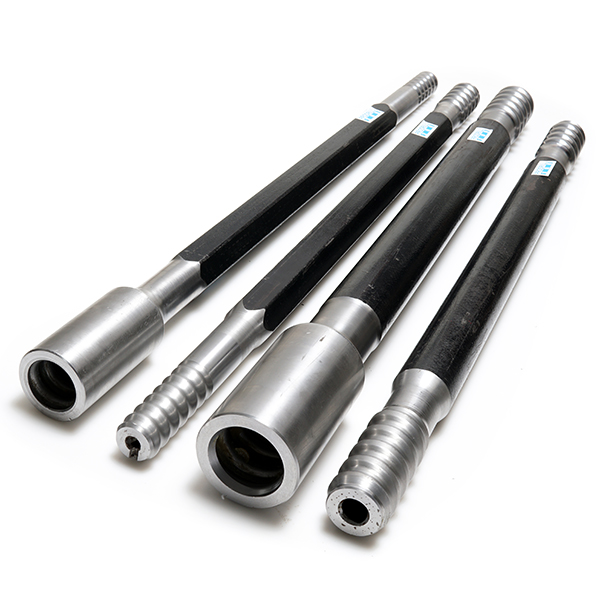

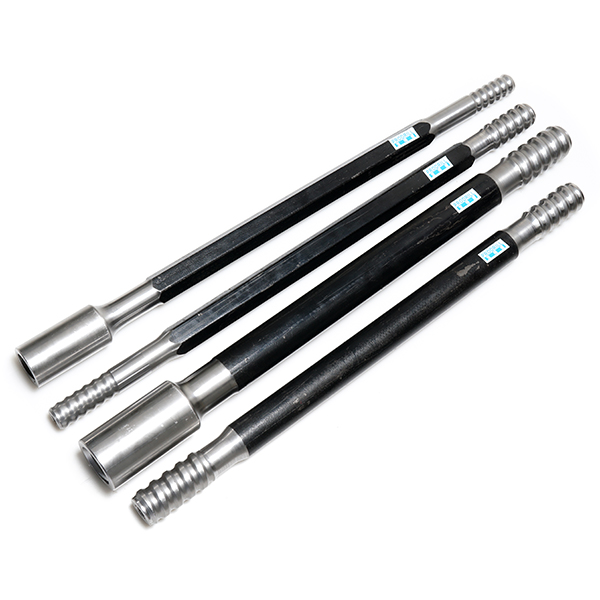

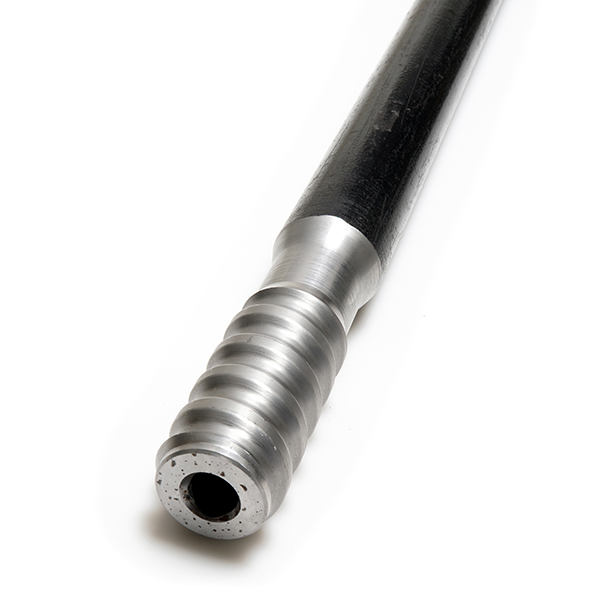

MF-T51 Extension Drill Rod

T51 MF ROD with length 700mm, 3050mm, 3660mm, 4270mm and other sizes available for customization.

MF-T51 Extension Drill Rod-ProDrill

MF-T51 Extension Drill Rod-ProDrill

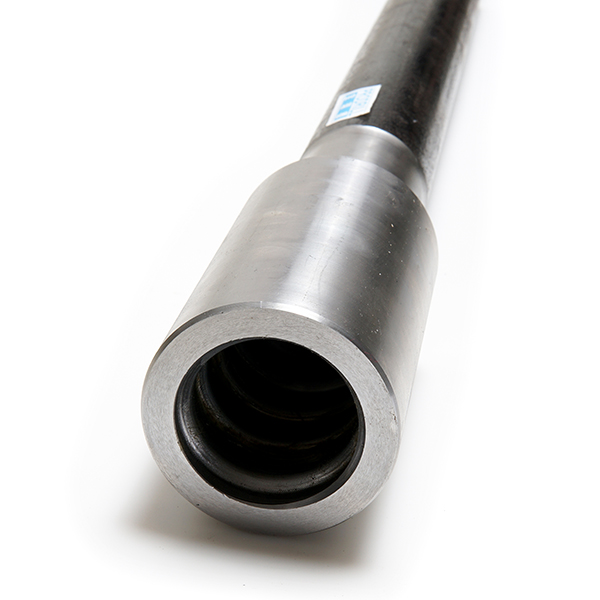

Male/Female (M/F) Steel

Male/Female drill steel provides more rigid connections and is easier to uncouple and handle. The service life also tends to be better than with separate couplings. This is fortunate because the coupling end cannot be replaced.

MF-T51 Extension Drill RodMF-T51 Extension Drill Rod

The advantages of drilling with M/F extension drill steel include: easy handling, quicker uncoupling, tighter connections and the

potential to drill straighter holes.

Extension Drill RodsExtension Drill Rods

MF-T51 Extension Drill Rod-ProDrill

PDF For more details please watch PDF online: Extension Drilling Rod for Bench Drilling, Long Hole Drilling Underground Catalogue
